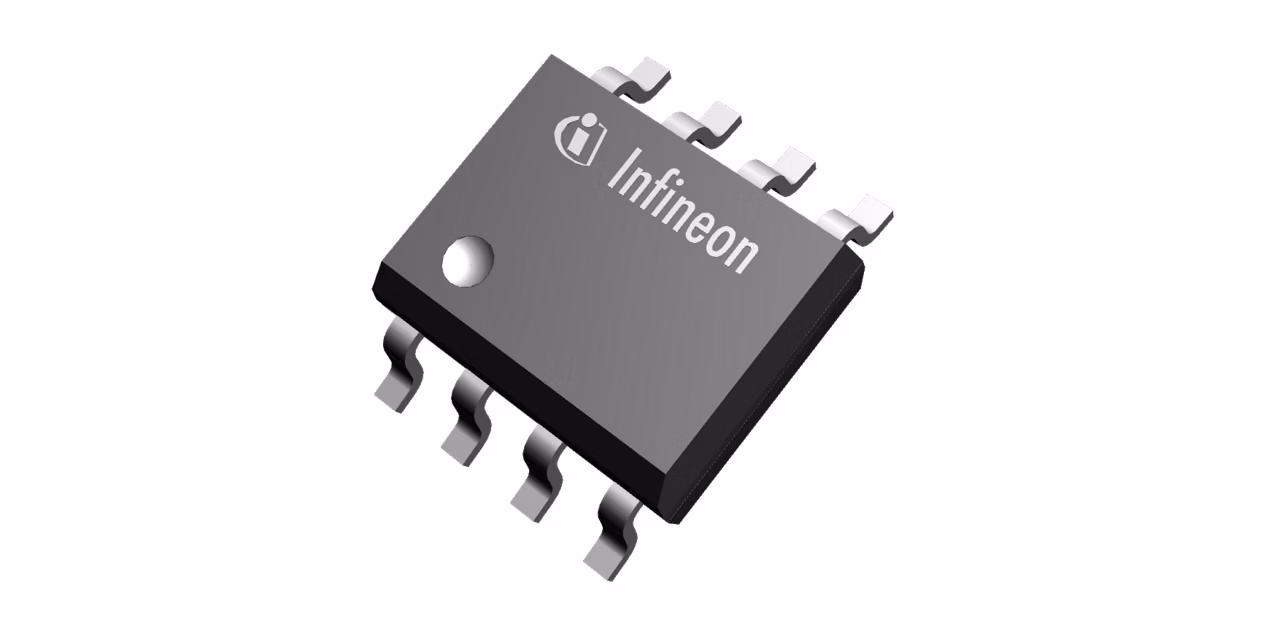

TLS805B1SJV
  • TLS805B1SJV

TLS805B1SJV

Active and preferred

TLS805B1SJV is a low quiescent current regulator with input range of 2.75V to 42V, ideal for automotive applications. Adjustable output voltage, 2% accuracy, and 50mA current capability. Requires just 1μF ceramic capacitor for stability. Enable feature for on/off control, consuming <1μA. Suitable for systems during cranking. Includes internal protection for current limitation and over-temperature shutdown.

Infineon Technologies TLS805B1SJV Product Info

16 April 2026 0

Parameters

Accuracy

2 %

Base Product

TLS805B1xx

Dropout Voltage

100 mV

Early Warning

No

Enable (=Inhibit)

Yes

Family

OPTIREG™ linear High Performance

Hold

No

Operating Temperature range

-40 °C to 150 °C

Operating Voltage range

2.75 V to 42 V

Output Current max

50 mA

Output Voltage Type

adj.

Over Voltage Protection

No

Planned to be available until at least

2038

Power Fail

No

Power Good

No

Qualification

Automotive

Quiescent Current

5 µA

Regulator Type

High Performance

Reset

No

Status Output

No

Watchdog

No

Apps

ADAS & autonomous driving, Automotive body electronics & power distribution, EV traction inverter, Battery energy storage (BESS)

Features

  • Wide Input Voltage Range: 2.75V to 42 V
  • 50 mA Current Capability
  • Adjustable Output from 1.2V
  • Ultra Low Quiescent Current: 5μA
  • Low Dropout Voltage: 100 mV @50mA
  • Enable Feature
  • Stable with 1μF Output Capacitor
  • Stable Aluminium,Tantalum or Ceramic
  • Output Current Limit Protection
  • Overtemperature Protection
  • PG-DSO8 package

Description

  • Automotive-grade:Robust & Cost-Effective
  • Optimized 1µF ceramic output capacitance
  • Save energy with ultra-low standby. nt
