TLS208D1EJV
  • TLS208D1EJV

TLS208D1EJV

Active and preferred

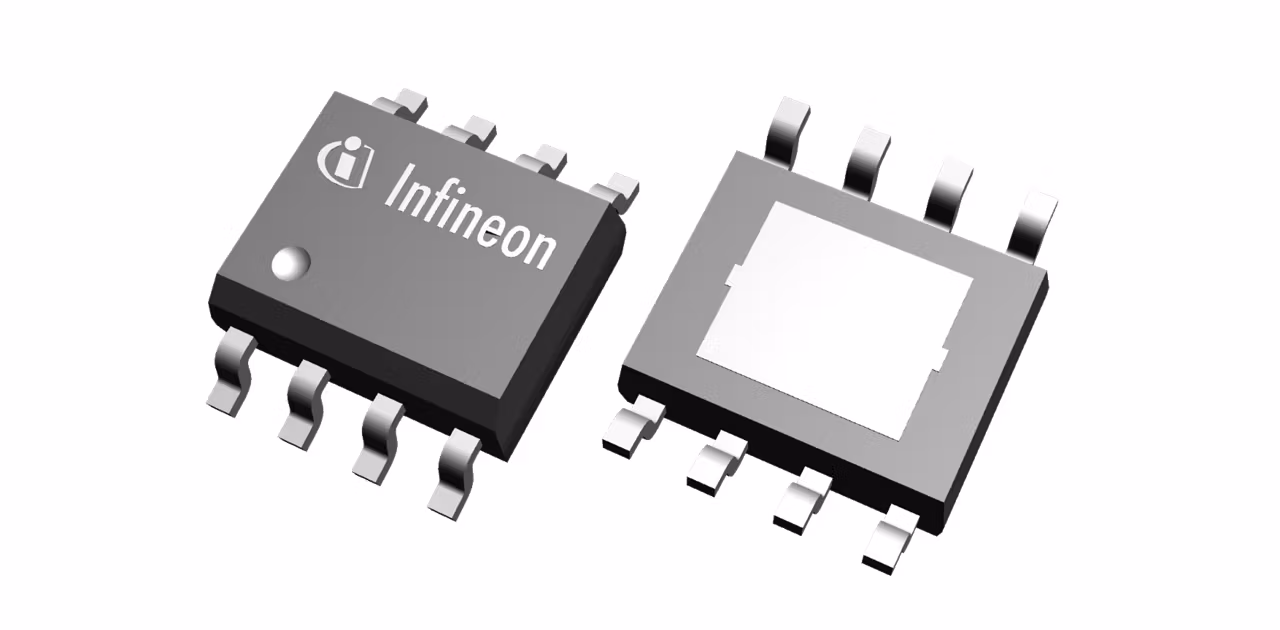

The TLS208D1EJV is designed for applications with a permanent connection to pre-regulators. Available in PG-DSO-8 (Exposed Pad) and TSON-10 packages. Features include enable functionality and adjustable reset threshold. Protected against overload, short circuit, and over-temperature. Input capacitor CI compensates line influences. Output capacitor CQ ensures stability of the regulating circuit. Ideal for automotive applications.

Infineon Technologies TLS208D1EJV Product Info

16 April 2026 0

Parameters

Accuracy

2 %

Base Product

TLS208D1xxVxx

Dropout Voltage

900 mV

Early Warning

No

Enable (=Inhibit)

Yes

Family

OPTIREG™ linear Post Regulator

Hold

No

Operating Temperature range

-40 °C to 150 °C

Operating Voltage range

2.7 V to 18 V

Output Current max

800 mA

Output Voltage Type

adj.

Over Voltage Protection

No

Planned to be available until at least

2037

Power Fail

No

Power Good

No

Qualification

Automotive

Quiescent Current

90 µA

Regulator Type

Post Regulator

Reset

Yes

Status Output

No

Watchdog

No

Apps

Edge computing, Automotive, ADAS & autonomous driving, Domain controller for ADAS & autonomous driving, Door control module

Features

  • Adjustable Output V from 0.8 V to 5.25 V
  • Output Voltage Accuracy of ± 2 %
  • Static Output Currents up to 800 mA
  • Enable Functionality
  • Undervoltage with Power-On Reset Delay
  • Adjustable Reset Threshold
  • Low Dropout Voltage: typ. 400mV at 400mA
  • Very Low Current Consumption: typ. 90 μA
  • Very High PSRR: typ. 62dB at 10kHz
  • Output Current Limitation
  • Overtemperature Shutdown

Description

  • Less system cost
  • Very high power supply ripple rejection
  • Suitable for cranking → 2.7V input
  • Power saving with enable feature
