TLS205B0EJ V33
  • TLS205B0EJ V33

TLS205B0EJ V33

Active and preferred

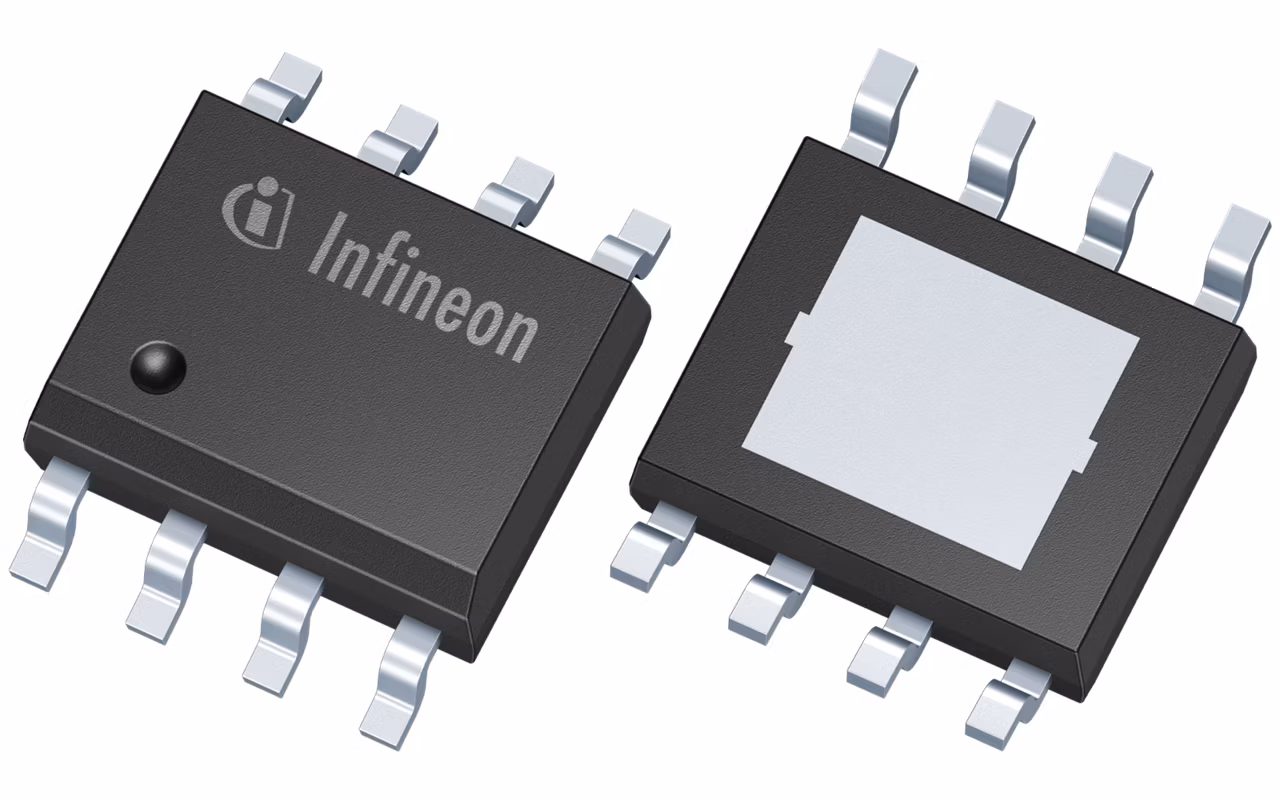

TLS205B0EJV33: Ideal for battery-powered systems with low quiescent current (30μA). Low output noise with 0.01μF bypass capacitor. Stable with small output capacitors (3.3μF), no series resistance needed for ceramic capacitors. Internal protection: reverse battery, current limiting, reverse current. Fixed output voltages (3.3V, 5.0V) and adjustable (1.22V reference). Available in PG-DSO8 and PG-TSON10 exposed pad packages.

Infineon Technologies TLS205B0EJ V33 Product Info

16 April 2026 0

Parameters

Accuracy

2.5 %

Base Product

TLS205B0xxVxx

Dropout Voltage

320 mV

Early Warning

No

Enable (=Inhibit)

Yes

Family

EiceDRIVER™ isolated gate driver ICs for EV

Hold

No

Operating Temperature range

-40 °C to 125 °C

Operating Voltage range

2.3 V to 20 V

Output Current max

500 mA

Output Voltage Type

3.3 V

Over Voltage Protection

No

Planned to be available until at least

2038

Power Fail

No

Power Good

No

Qualification

Automotive

Quiescent Current

30 µA

Regulator Type

Post Regulator

Reset

No

Status Output

No

Watchdog

No

Apps

Domain controller for ADAS & autonomous driving, Multi-purpose camera, Automotive body control module (BCM), Automotive battery management system (BMS) - high-voltage, DC-DC converter high-voltage

Features

  • Wide Input Voltage Range: up to 20 V
  • 500 mA Current Capability
  • Low Quiescent Current: 30μA
  • Low Dropout Voltage: 320 mV
  • Low Noise typ.: 30µV RMS
  • LIN 2.1 (Physical layer)
  • Reverse battery protected up to -2.5V
  • 8kV ESD protection for alternator
  • Duty cycle excitation 0-100%
  • Load response control (LRC)
  • Temperature range -40°C to 175°C

Description

  • Wide input voltage range
  • Low noise
