TLS203B0EJ V33
  • TLS203B0EJ V33

TLS203B0EJ V33

Active and preferred

Designed for use in battery-powered systems, the low quiescent current of 30 μA makes it an ideal choice. A key feature of the TLS203B0 is its low output noise. By adding an external 0.01 μF bypass capacitor, the output noise drops to very low numbers. The TLS203B0 voltage regulator is stable with output capacitors as small as 3.3 μF. Small ceramic capacitors can be used without the series resistance required by many other regulators. Internal protection circuitry includes reverse battery protection, current limiting and reverse current protection. The TLS203B0 comes as fixed output voltages 3.3 V, 5.0 V as well as an adjustable device with a 1.22 V reference voltage. It is available in a PG-DSO8 exposed pad package.

Infineon Technologies TLS203B0EJ V33 Product Info

16 April 2026 0

Parameters

Accuracy

2.5 %

Base Product

TLS203B0xxVxx

Dropout Voltage

270 mV

Early Warning

No

Enable (=Inhibit)

Yes

Family

OPTIREG™ linear Post Regulator

Hold

No

Operating Temperature range

-40 °C to 125 °C

Operating Voltage range

2.3 V to 20 V

Output Current max

300 mA

Output Voltage Type

3.3 V

Over Voltage Protection

No

Planned to be available until at least

2038

Power Fail

No

Power Good

No

Qualification

Automotive

Quiescent Current

30 µA

Regulator Type

Post Regulator

Reset

No

Status Output

No

Watchdog

No

Apps

Automotive body control module (BCM), Chassis domain control, Wearable payments

Features

  • Wide Input Voltage Range: up to 20 V
  • 300 mA Current Capability
  • Low Quiescent Current: 30μA RMS
  • Low Dropout Voltage: 270 mV
  • Low Noise down to 30µV
  • Fixed Output Voltage: 3.3 V
  • Enable Feature
  • Internal circuitry working down to 2.3 V
  • Very low Shutdown Current: < 1μA
  • No Protection Diodes Needed
  • Stable with ≥ 3.3 μF Output Capacitor
  • Stable with Aluminium, Tantalum or Ceramic Output Capacitors
  • Reverse Polarity Protection
  • Overcurrent and Overtemperature Protected

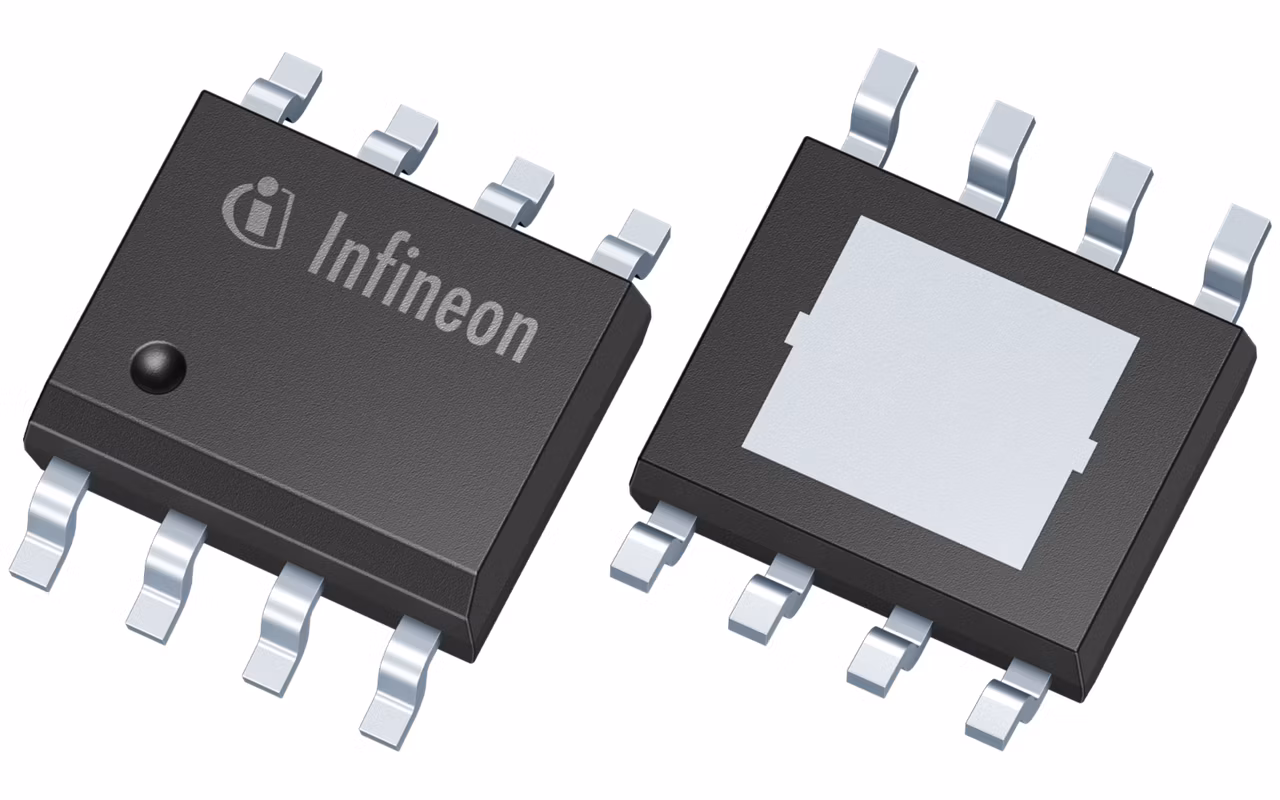

  • PG-DSO8 exposed pad package
  • Suitable for Use in Automotive Electronics as Post Regulator
  • Green Product (RoHS compliant)
  • AEC Qualified

Description

  • Wide input voltage range
  • Output ceramic caps supported
  • Low noise
