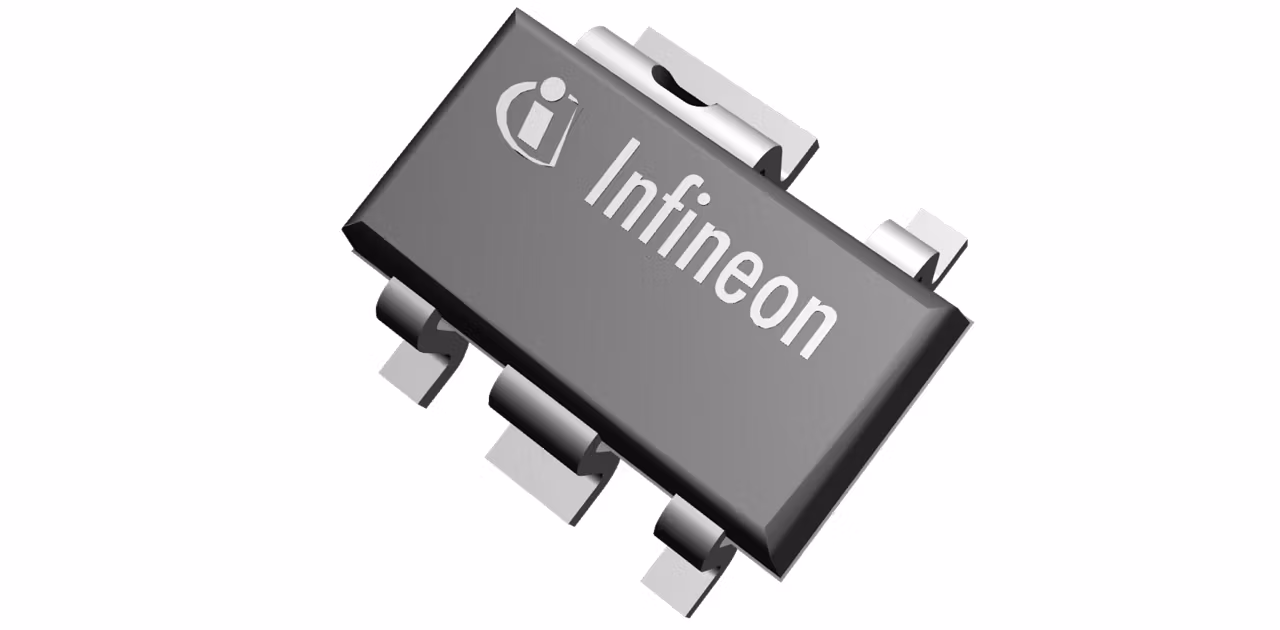

TLS202B1MBV33
  • TLS202B1MBV33

TLS202B1MBV33

Active and preferred

The IC regulates input voltage VI(up to 18V) to fixed output voltage (1.2V to 5.25V) with ±3% precision. Ideal for low standby current applications connected to preregulators. Not suitable for direct battery connection. Enables on/off control. Small PG-SCT595 package. Designed for automotive applications, protected against overload, short circuit, and overtemperature. Can be used in other applications requiring stabilized voltage (1.2V to 5.25V).

Infineon Technologies TLS202B1MBV33 Product Info

16 April 2026 0

Parameters

Accuracy

3 %

Base Product

TLS202x1MBVxx

Dropout Voltage

290 mV

Early Warning

No

Enable (=Inhibit)

Yes

Hold

No

Operating Temperature range

-40 °C to 150 °C

Operating Voltage range

2.7 V to 18 V

Output Current max

150 mA

Output Voltage Type

3.3 V

Over Voltage Protection

No

Planned to be available until at least

2037

Power Fail

No

Power Good

No

Qualification

Automotive

Quiescent Current

50 µA

Regulator Type

Post Regulator

Reset

No

Status Output

No

Watchdog

No

Apps

Electric vehicle drivetrain system, Hydrogen electrolysis

Features

  • Output Voltage: 3.3 V
  • Output Voltage Accuracy of ±3 %
  • Output Currents up to 150 mA
  • Extended I/O V Op Range of 2.7 V to 18 V
  • Enable Functionality
  • Low Dropout Voltage: typ. 290mV
  • Very Low Current Consumption: typ. 50 μA
  • Very Low Shutdown Current: typ. 0.01 μA
  • Very High PSRR: typ. 63dB at 10 kHz
  • Output Current Limitation
  • Short Circuit protected
