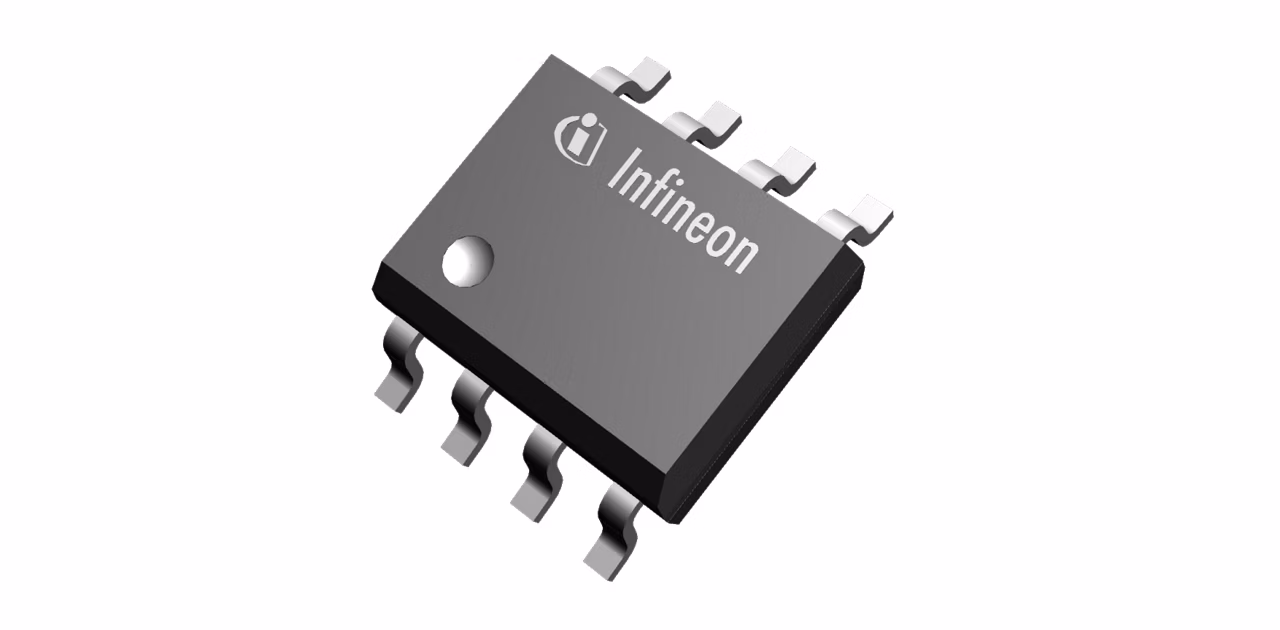

TLI5012B E1000
  • TLI5012B E1000

TLI5012B E1000

Active and preferred

The Infineon TLI5012B E1000 is a 360° angle sensor, detecting magnetic field orientation via integrated Giant Magneto Resistance elements. Pre-calibrated with stored parameters, it features an internal autocalibration algorithm for precise measurements over temperature and lifetime. Data communication is through bi-directional Synchronous Serial Communication (SPI-compatible). Also, it offers an Incremental Interface (IIF).

Infineon Technologies TLI5012B E1000 Product Info

16 April 2026 11

Parameters

Classification

QM

Interfaces

SPI, IIF

ISO 26262

QM

Magnetic field range

25 mT to 70 mT

Package

SMD

Planned to be available until at least

2033

Supply Voltage range

-0.5 V to 6.5 V

Supply Voltage ((V))

-0.5-6.5

Technology

GMR

Temperature range

-40 °C to 125 °C

Apps

Home appliances, Refrigerators and freezers, Domestic robots

Features

  • TLI5012B E1000 features&preconfiguration
  • Field sensing for angle measurement
  • 360° angle measurement with revolution
  • Max. 1.9° angle error over lifetime
  • SSC with 15 bit representation value
  • Incremental Interface with 12bit
  • Fast angle update period (42.7μs)
  • Autocalibration mode 1 enabled
  • Prediction disabled
  • Hysteresis set to 0.703°
  • Bus mode operation of multiple sensors
  • Diagnostic functions and status information
