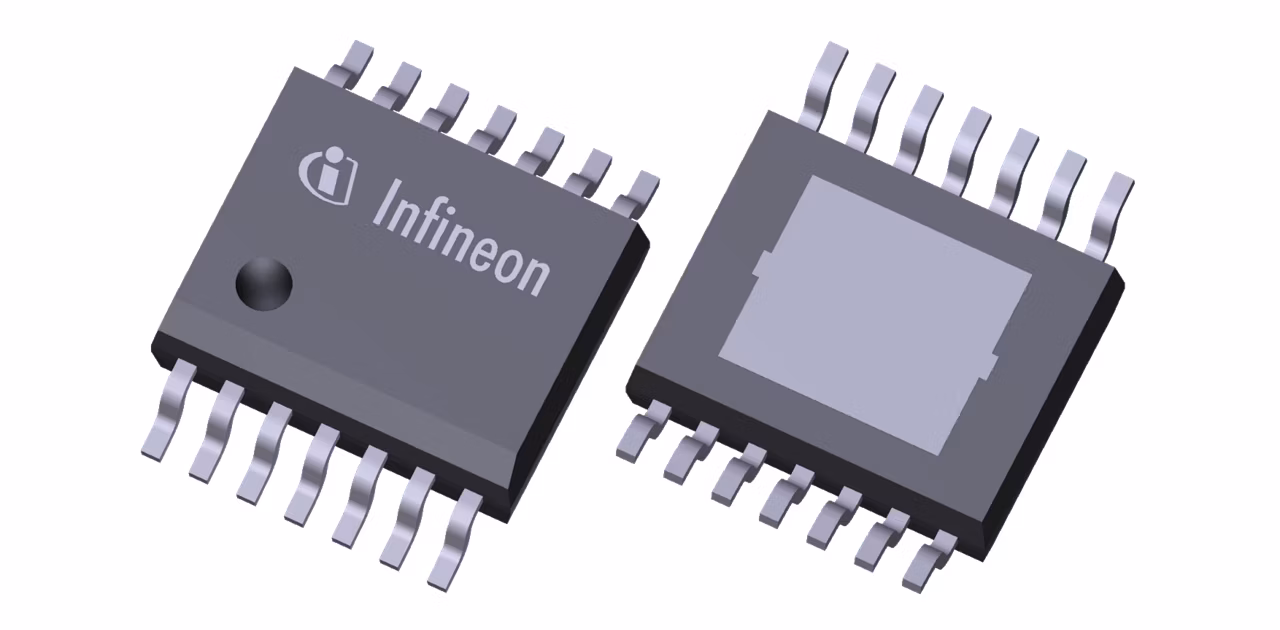

TLF50241EL
  • TLF50241EL

TLF50241EL

The TLF50241EL is designed for harsh automotive environments with a wide input voltage range of 4.75 V to 45 V. Its 2.2 MHz nominal switching frequency enables the use of small and cost-effective components, reducing output voltage ripple and board space consumption. In light load conditions, the device operates in Pulse Frequency Modulation (PFM) mode to optimize efficiency by minimizing internal power consumption during idle periods.

Infineon Technologies TLF50241EL Product Info

16 April 2026 0

Parameters

Base Product

TLF502xx

Budgetary Price €/1k

1.04

Comments

Automotive Step-down integrated regulator , optimized for low quiescent operation, 5V/500mA, RES, 100%DC, f=2,2MHz, Iq<45µA

Inhibit

No

IQ max

500 mA

Iq

45 µA

Mounting

SMT

Operating Temperature range

-40 °C to 150 °C

Output Current Type

Buck Converter

Protect

Yes

Regulator Type

Buck Converter

Reset

Yes

Tolerance

2%

VQ (multiple)

5V

Watchdog

No

Apps

Automotive body control module (BCM)

Features

  • 500 mA step down voltage regulator
  • 5 V Output voltage
  • ± 2% output voltage tolerance
  • Low quiescent current (less than 45μA at nominal battery voltage)
  • Current mode PWM regulation
  • PFM mode for light load current
  • Input voltage range from 4.75V to 45V
  • Integrated power transistor
  • 2.2 MHz switching frequency
  • 100% Duty cycle
  • Synchronization input
  • Integrated compensation
  • Integrated soft-start function
  • Reset generator with adjustable threshold
  • Input undervoltage lockout
  • Suited for automotive applications: Tj = -40 °C to +150 °C
  • Green Product (RoHS compliant)
  • AEC Qualified
  • Pin-compatible family approach

Description

  • Low current consumption for permanently Vbat-connnected systems
  • High switching frequency reduces value and size of coil and output capacitor
  • Low drop-out operation due to 100% DC
  • No external components required for compensation and soft-start
  • Flexibility in setting reset threshold
  • One base design for multiple requirements by family approach
