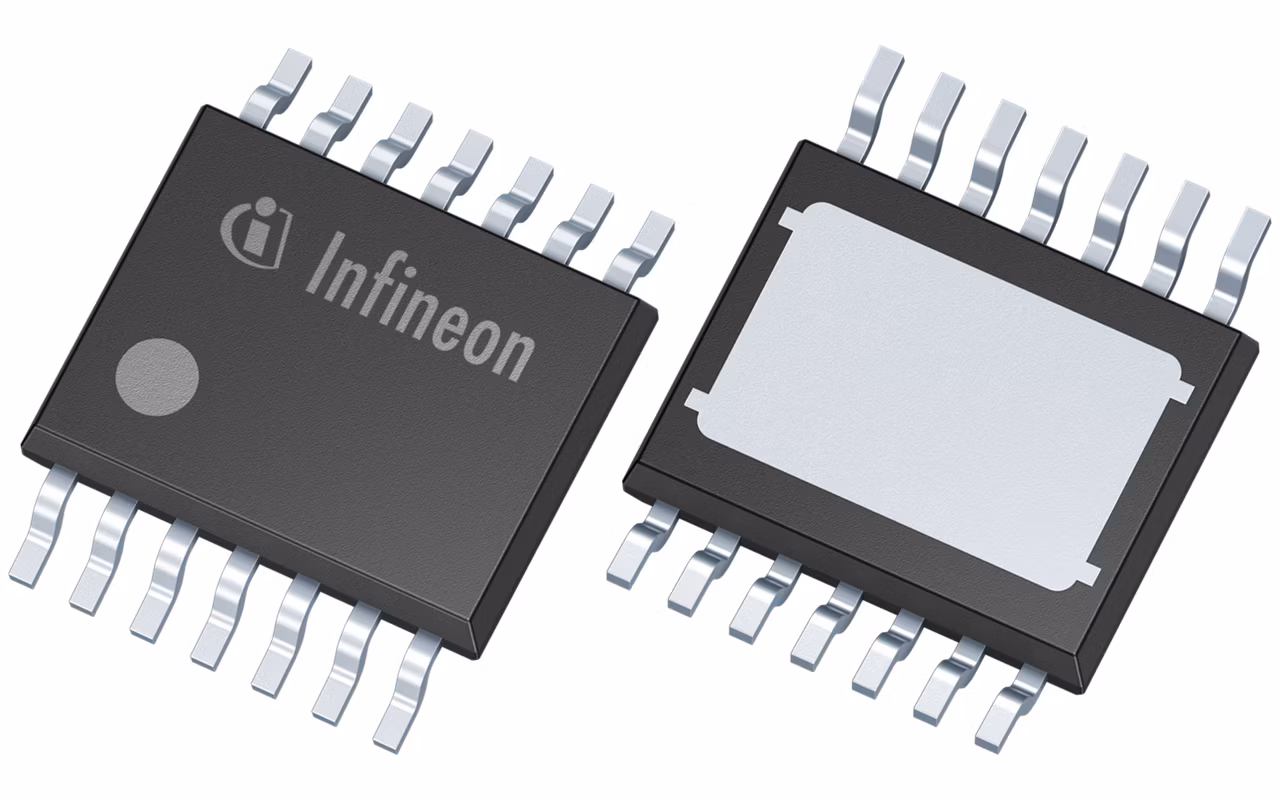

TLF11251EP

Active and preferred

Infineon Technologies TLF11251EP Product Info

16 April 2026 0

Base Product	TLF11251xx
Classification	NA
Comments	integrated gate drivers, integrated level-shifters, Grade 0, Integrated PMOS and NMOS complementary output bridge, 2.5 A current capability
Compatible Microcontrollers	AURIX TC3x
Enable (=Inhibit)	No
Iout max	2500 mA
Iq	200 µA
ISO 26262	QM
Operating Temperature range	-40 °C to 175 °C
Operating Voltage range	3.5 V to 7 V
Over Voltage Protection	Yes
Package	PG-TSDSO-14
Planned to be available until at least	2039
Product Group	PMIC
Qualification	Automotive
Regulator Type	N/A
Reset	No
Target Application	PMIC Companion, Safe Control, Safe Computing
Tolerance	N/A
VQ (multiple)	N/A
Watchdog	No

EV traction inverter, On-board charging (OBC), Light electric vehicle solutions

Integrated PMOS and NMOS complementary output bridge with 2.5 A current capability
Integrated gate drivers
Single control input with an integrated dead-time logic allows for optimized control and high efficiency
Output current sensing and limitation
Over-temperature protection
Low quiescent current
No external dead-time adjustment required
AEC Qualified
Grade 1 PG-TSON-10
Grade 0 PG-TSDSO-14

Efficiency increase
Thermal optimization
Proven operation with high-end 2nd generation TriCore™ AURIX™ 32-bit microcontrollers (TC38x/TC39x)
Package line-up for all use cases
