TLE9872-2QTW40
  • TLE9872-2QTW40

TLE9872-2QTW40

The TLE9872-2QTW40 is a highly integrated 3-Phase motor driver with an Arm® Cortex®-M3 core, flash memory, analog and mixed-signal peripherals, LIN transceiver, and driving stages integrated on a single die. It features two 14-bit sigma-delta ADCs and enables advanced motor control algorithms like field-oriented control, making it ideal for automotive BLDC motor control applications.

Infineon Technologies TLE9872-2QTW40 Product Info

16 April 2026 0

Parameters

Family

MOTIX™ motor control SoCs

Flash

256 kByte

Frequency

40 MHz

GPIO

15

Interfaces

PWM, LIN

MCU

Arm® Cortex®-M3

Motor Driver

3-phase bridge driver

Operational Amplifier

Yes

Planned to be available until at least

2035

Power Stage

No

RAM

8 kByte

SD-ADC

yes

Supply Voltage range

5.5 V to 28 V

Temperature range

-40 °C to 175 °C

Temperature

- 40°C - 175°C

Features

  • 32-bit Arm® Cortex®-M3 up to 40 MHz
  • Single power supply from 5.5 V to 28 V
  • On-chip oscillator and PLL for clock
  • 256 KB flash, 8 KB RAM, EEPROM emu
  • Integrated LIN transceiver
  • High voltage monitoring pin (MON)
  • Fast synchronous communication (SSC)
  • Three-phase bridge driver (BDRV)
  • Low-side shunt current sense amplifier
  • 8-bit and 10-bit ADCs
  • 2x 14-bit SDADC, 2 differential inputs

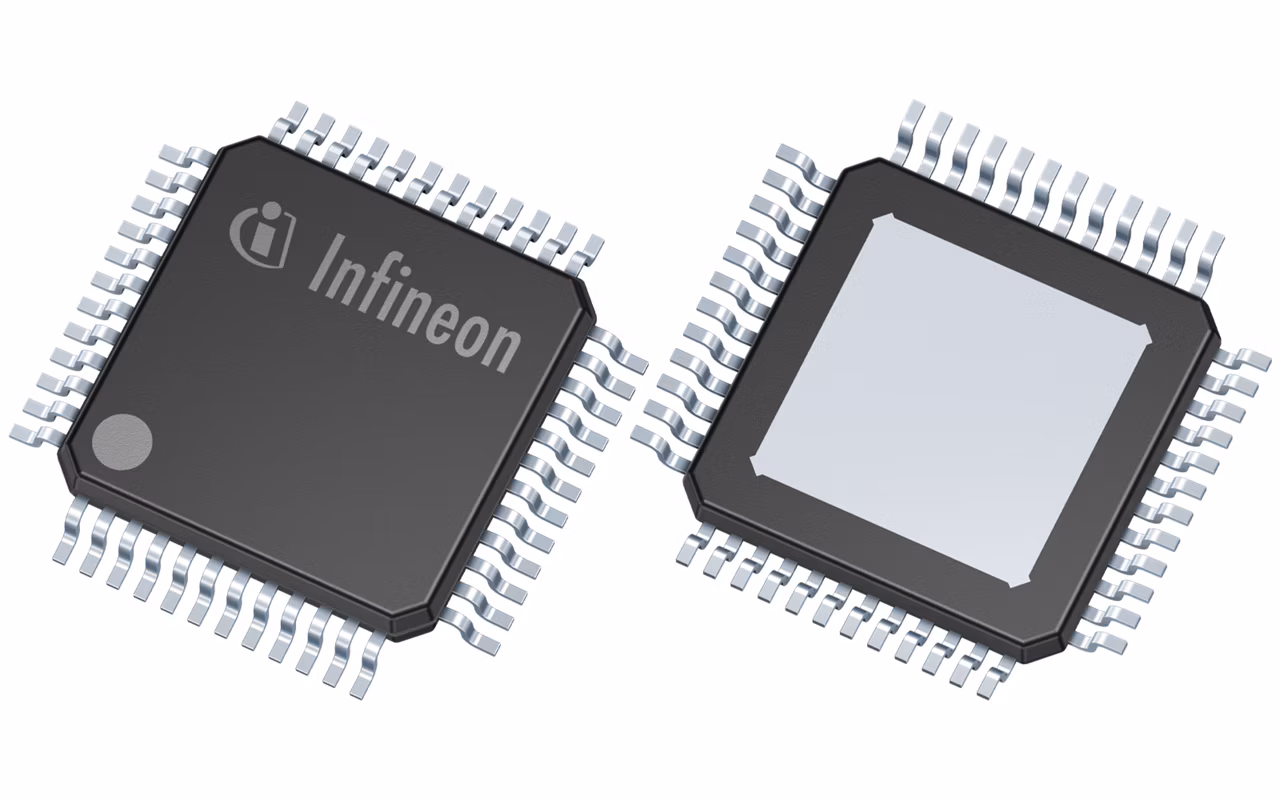

  • Tj: -40°C to 175°C, Package: TQFP-48

Description

  • Best-in-class device
  • Optimized BOM cost
  • Compact dimensions
  • Premium design-in experience
