TLE9351VSJ
  • TLE9351VSJ

TLE9351VSJ

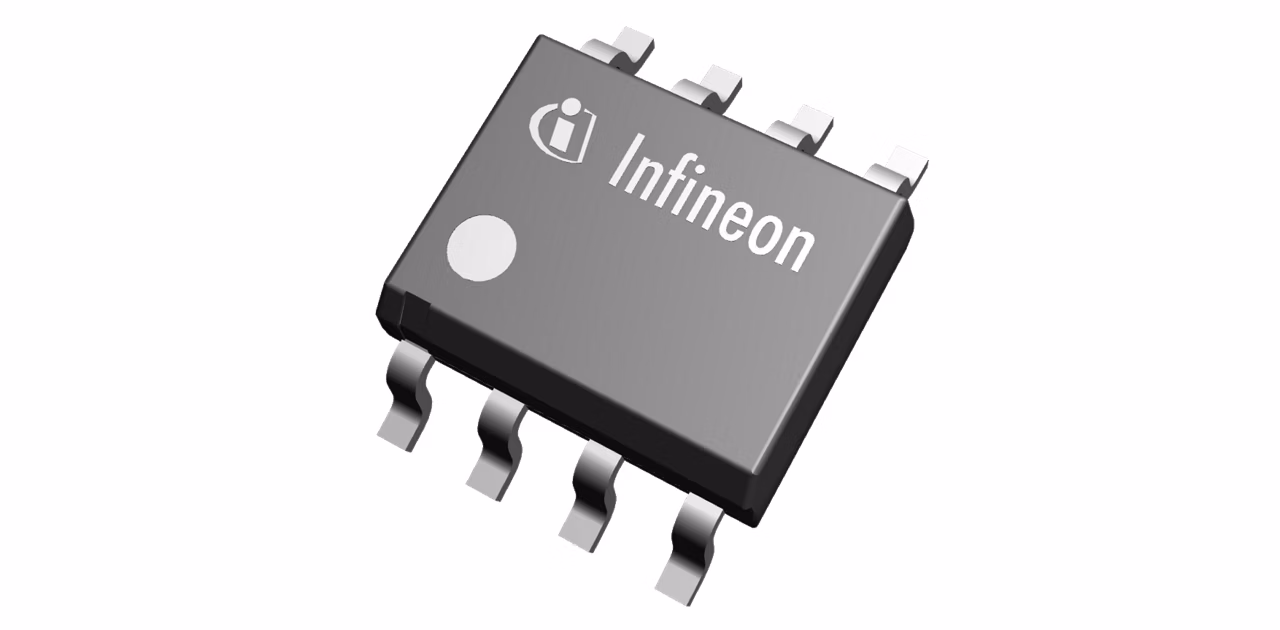

The TLE9351VSJ is a high-speed CAN transceiver for automotive and industrial applications, meeting ISO 11898-2:2016, SAE J1939, and SAE J2284 standards. It provides low EME, high ESD robustness, and optimized RF immunity. With support for CAN FD data frames and data rates up to 5 MBit/s, it ensures reliable communication. The device features low-power modes and fail-safe protection.

Infineon Technologies TLE9351VSJ Product Info

16 April 2026 0

Parameters

Additional Features

STB, Vio

Base Product

TLE935x

Bus Wake-Up Capability

Yes

Family

CAN FD 5MBit/s

Features

STB, WK, Vio

Language

IBIS

Product Category

Transceivers

Qualification

Automotive

Quiescent Current

< 18 µA at 5 V standby

Standards

ISO11898-2

Supply Voltage

5 V, 3.3 V

Transmission Rate max

5 MBit/s

Type

CAN FD, CAN

Wake-up Inputs

Bus Wake-up

Apps

Automotive secondary power distribution unit, EV traction inverter, Light electric vehicle solutions

Features

  • ISO 11898-2:2016 and SAE J2284-4/-5
  • CAN FD data frames up to 5 MBit/s
  • Certified according to VeLIO
  • Very low(EME) allows common mode choke
  • Microcontroller interface (3.3 V or 5 V)
  • Global OEM Optimized WUP Filter Pattern
  • Stand-by mode with min quiescent current
  • VCC disable in standby for lower current
  • Excellent ESD robustness
  • TxD time-out function
  • Minimal CAN Bus Leakage in Power-Down
  • Overtemperature protection
