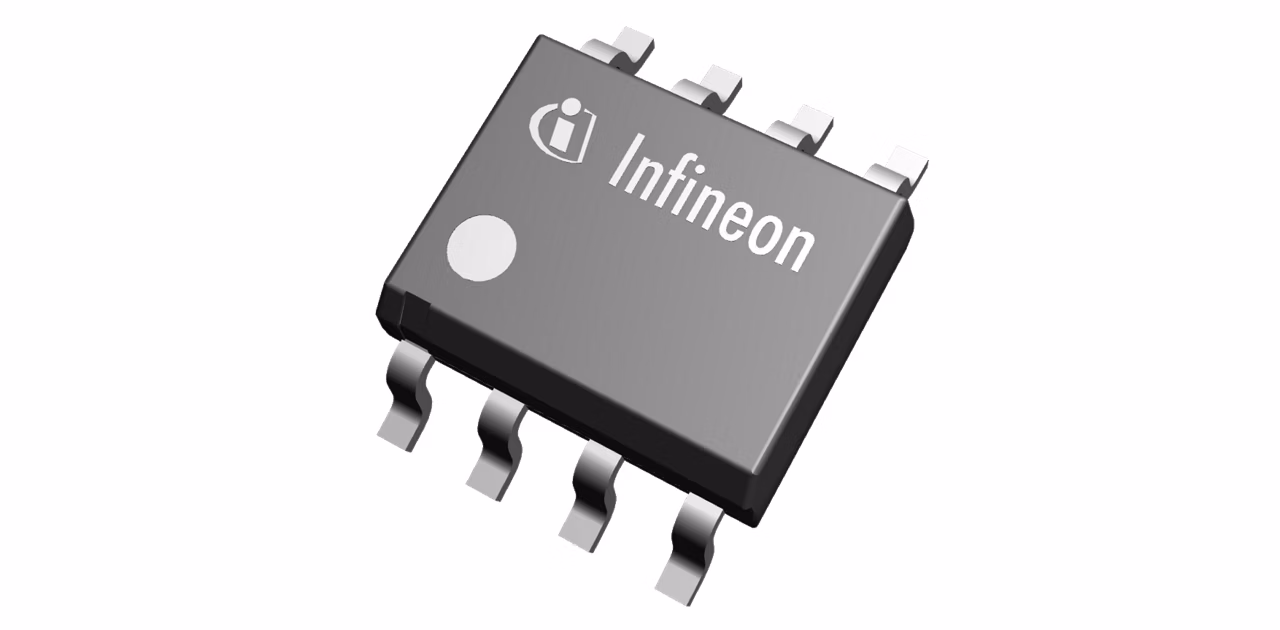

TLE9351BVSJ

Active and preferred

Infineon Technologies TLE9351BVSJ Product Info

16 April 2026 0

Additional Features	higher mission profile
Bus Wake-Up Capability	Yes
Family	CAN Transceiver
Language	IBIS
Planned to be available until at least	2039
Quiescent Current	<18µA @5V STB
Standards	ISO 11898-2:2016, SAE J2284-4/-8
Transmission Rate max	5 MBit/s

Fully compliant to ISO 11898-2:2016 and SAE J2284-4/-5
Loop delay symmetry for CAN FD data frames up to 5 Mbit/s
Very low electromagnetic emission (EME) allows the use without
VIO input for voltage adaption to the microcontroller interface (3.3 V or 5 V)
Bus wake-up pattern (WUP) function with optimized filter time for
Standby mode with minimized quiescent current
Transmitter supply VCC can be disabled in standby mode to further minimize quiescent current
Excellent ESD robustness
TxD timeout function
Very low CAN bus leakage current in power-down state
Overtemperature protection
Protected against automotive transients according to ISO 7637 and SAE J2962-2
