TLE9350VSJ
  • TLE9350VSJ

TLE9350VSJ

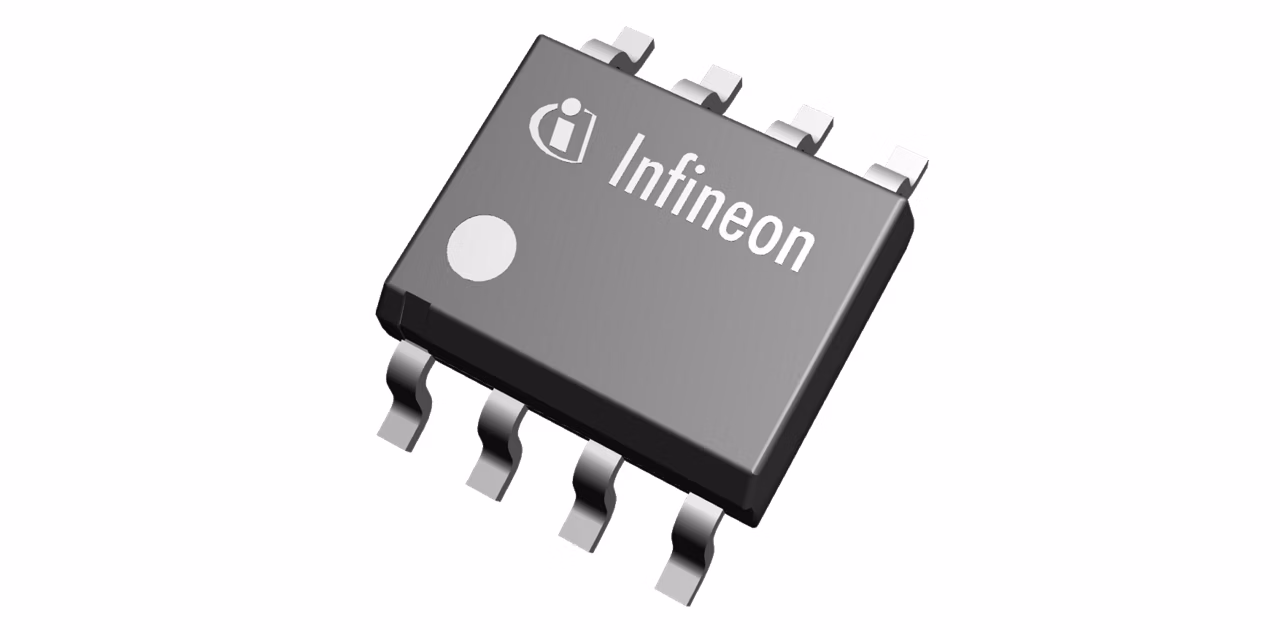

The TLE9350VSJ is a high-speed CAN transceiver for automotive and industrial applications. It meets ISO 11898-2:2016, SAE J1939, and SAE J2284. It offers ESD robustness and RF immunity, eliminating the need for additional protection devices. The symmetrical output signals minimize electromagnetic emission. It supports CAN FD with rates up to 5 MBit/s. Fail-safe protect against damage. The TLE9350VSJ comes in a RoHS-compliant PG-DSO-8 package.

Infineon Technologies TLE9350VSJ Product Info

16 April 2026 0

Parameters

Additional Features

NEN, Vio

Base Product

TLE935x

Bus Wake-Up Capability

No

Family

CAN FD 5MBit/s

Features

NEN, Vio

Language

IBIS

Product Category

Transceivers

Qualification

Automotive

Quiescent Current

< 18 µA at 5 V standby

Standards

ISO11898-2

Supply Voltage

5 V, 3.3 V

Transmission Rate max

5 MBit/s

Type

CAN FD, CAN

Wake-up Inputs

None

Apps

Electric brake booster, Chassis domain control, DC-DC converter high-voltage, On-board charging (OBC)

Features

  • ISO 11898-2:2016 and SAE J2284-4/-5
  • CAN FD data frames up to 5 MBit/s
  • Certified according to VeLIO
  • Very low(EME) allows common mode choke
  • Microcontroller interface (3.3 V or 5 V)
  • Excellent ESD robustness
  • Ultra-Low CAN Bus Power-Down
  • Overtemperature protection
  • Protection from ISO 7637 & SAE J2962-2
  • Power-save mode
  • Green Product (RoHS compliant)
