TLE9350BVSJ
  • TLE9350BVSJ

TLE9350BVSJ

Active and preferred

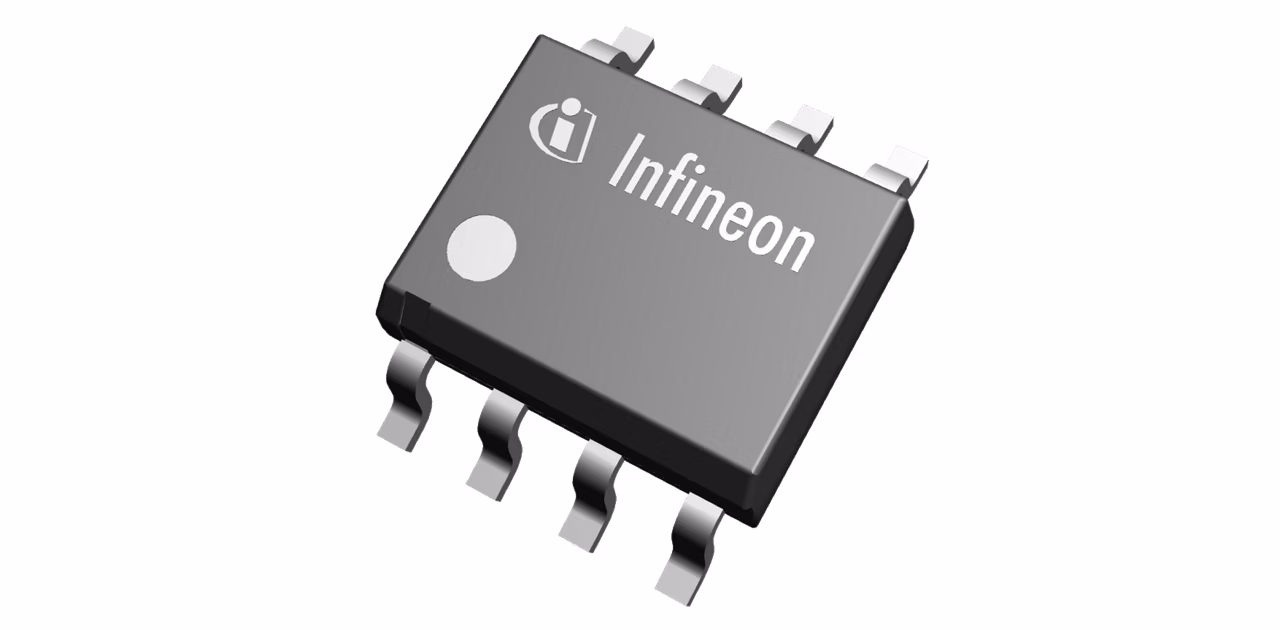

The TLE9350BVSJ is a high speed CAN transceiver, used in HS CAN systems for automotive applications as well as for industrial applications. It is designed to fulfill the requirements of ISO 11898-2:2016 physical layer specification as well as SAE J1939 and SAE J2284. The TLE9350BVSJ is available in a RoHS compliant, halogen free PG-DSO-8 package.

Infineon Technologies TLE9350BVSJ Product Info

16 April 2026 0

Parameters

Additional Features

higher mission profile

Bus Wake-Up Capability

No

Family

CAN Transceiver

Language

IBIS

Planned to be available until at least

2039

Quiescent Current

<18µA @5V STB

Standards

ISO 11898-2:2016, SAE J2284-4/-6

Transmission Rate max

5 MBit/s

Features

  • Fully compliant to ISO 11898-2:2016 and SAE J2284-4/-5
  • Loop delay symmetry for CAN FD data frames up to 5 Mbit/s
  • Very low electromagnetic emission (EME) allows the use without
    • additional common mode choke
  • VIO input for voltage adaption to the microcontroller interface (3.3 V or 5 V)
  • Excellent ESD robustness
  • TxD timeout function
  • Very low CAN bus leakage current in power-down state
  • Overtemperature protection
  • Protected against automotive transients according to ISO 7637 and SAE J2962-2
  • Power-save mode
  • Green Product (RoHS compliant)

Description

  • Very low current consumption thru power safe mode and very low leakage current
  • Excellent ESD robustness allowing use without external protection devices
