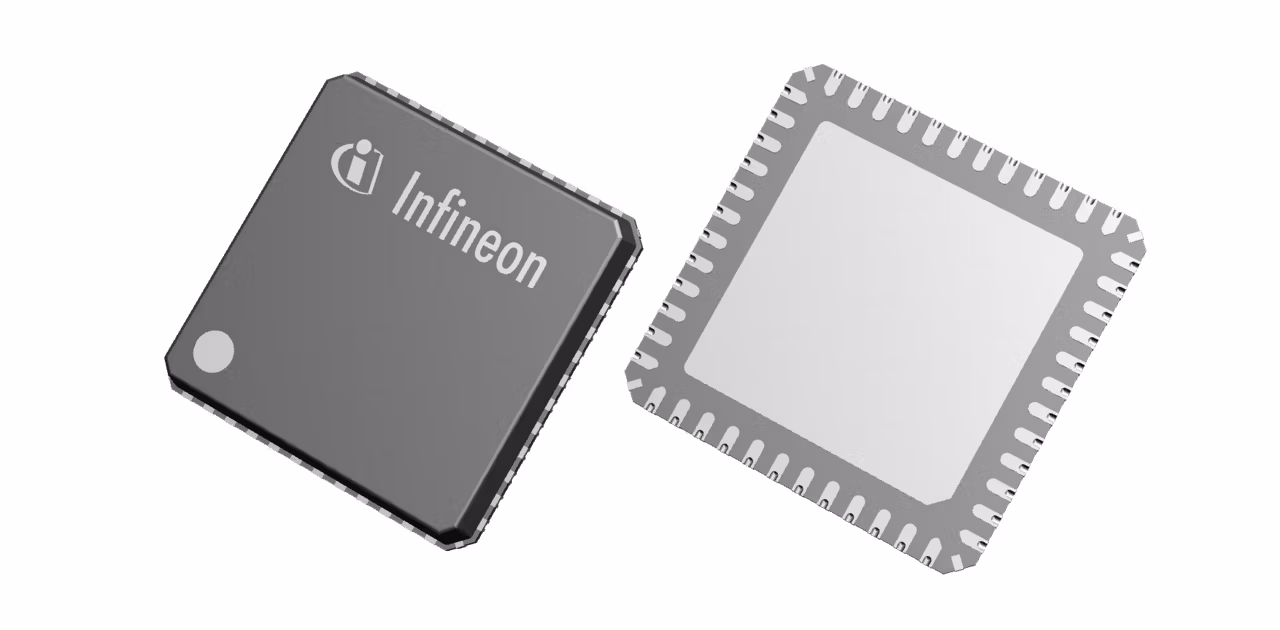

TLE9274QX V33

Active and preferred

CAN-LIN SBC for automotive apps. Includes SMPS (3.3V), LDO (5V) with off-board protection, DC/DC Boost converter, HS-CAN transceiver (CAN FD), LIN transceiver, 16-bit SPI. Watchdog, Fail-Safe Input/Outputs, undervoltage reset. Low-power modes for battery apps. Wake-up via buses, input, cyclic wake. Built for automotive conditions.

Infineon Technologies TLE9274QX V33 Product Info

16 April 2026 0

Parameters

Compatible Microcontrollers	TRAVEO™ T1G, T2G, AURIX™ TC2x, TC3x
Family	OPTIREG™ DCDC SBC
Iout max	750 mA
Planned to be available until at least	2039
Quiescent Current	30 μA (typ) Sleep Mode
Standby Current	50 μA (typ) Stop Mode
Transceiver	1 x CAN FD ISO 11898-2, 4 x LIN2.2 / J2602
Transmission Rate max	5 MBit/s
VBOOST	6.65 V, 10 V, 8 V
Voltage Regulator Output ((VCC2))	5V / 100 mA
Voltage Regulator Output ((VCC1))	3.3V / 750 mA
Wake-up Inputs	Wake Pins, CAN, LIN

Apps

Domain controller for ADAS & autonomous driving, Automotive body electronics & power distribution, Automotive body control module (BCM), Automotive battery management system (BMS) - 48 V

Features

Very low quiescent in SBC Stop Mode
Periodic Cyclic Wake in SBC Normal
SMPS 750mA (DC/DC buck) V regulator 3.3V
DC/DC Boost for low battery supply V
Low-Drop Voltage Regulator 5V/100mA
High-Speed CAN IS011898-2:2016
4 LIN Transceivers LIN2.2, SAE J2602
Compliant with ATV Hardware Requirements
Universal High-Voltage Wake Input
Configurable wake-up sources
Reset Output
