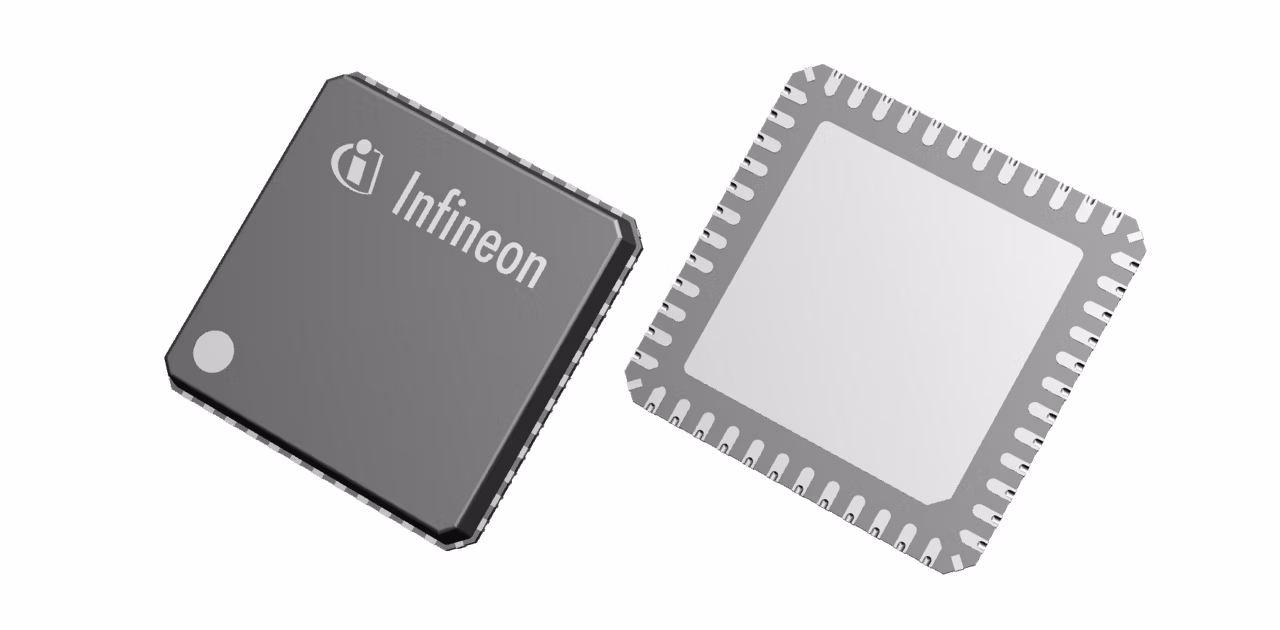

TLE9273QX

Active and preferred

CAN-LIN SBC for automotive applications. SMPS regulator for 5V supply, LDO for sensor supply, DC/DC Boost converter. HS-CAN transceiver (CAN FD), LIN transceiver. 16-bit SPI. Watchdog, Fail-Safe Input/Outputs, undervoltage reset. Low-power modes for battery apps. Wake-up via buses, inputs, cyclic wake. Built for automotive conditions.

Infineon Technologies TLE9273QX Product Info

16 April 2026 0

Parameters

Compatible Microcontrollers	TRAVEO™ T1G, T2G, AURIX™ TC2x, TC3x
Family	EiceDRIVER™ isolated gate driver ICs for EV
Iout max	750 mA
Output Current max	750 mA
Planned to be available until at least	2039
Quiescent Current	30 μA (typ) Sleep Mode
Standby Current	50 μA (typ) Stop Mode
Transceiver	4 x LIN2.2 / J2602, 1 x CAN FD ISO 11898-2
Transmission Rate max	5 MBit/s
VBOOST	8 V, 6.65 V
Voltage Regulator Output ((VCC1))	5V / 750 mA
Voltage Regulator Output ((VCC2))	5V / 100 mA
Wake-up Inputs	Wake Pins, CAN, LIN

Apps

Domain controller for ADAS & autonomous driving, Automotive gateway, Automotive secondary power distribution unit, Automotive body control module (BCM), Seat control module

Features

Very low quiescent in SBC Stop Mode
Periodic Cyclic Wake in SBC Normal
SMPS 750mA (DC/DC buck) V regulator 5V
DC/DC Boost for low battery supply V
Low-Drop Voltage Regulator 5V/100mA
High-Speed CAN IS011898-2:2016
4 LIN Transceivers LIN2.2, SAE J2602
Compliant with ATV Hardware Requirements
Universal High-Voltage Wake Input
Configurable wake-up sources
Reset Output
