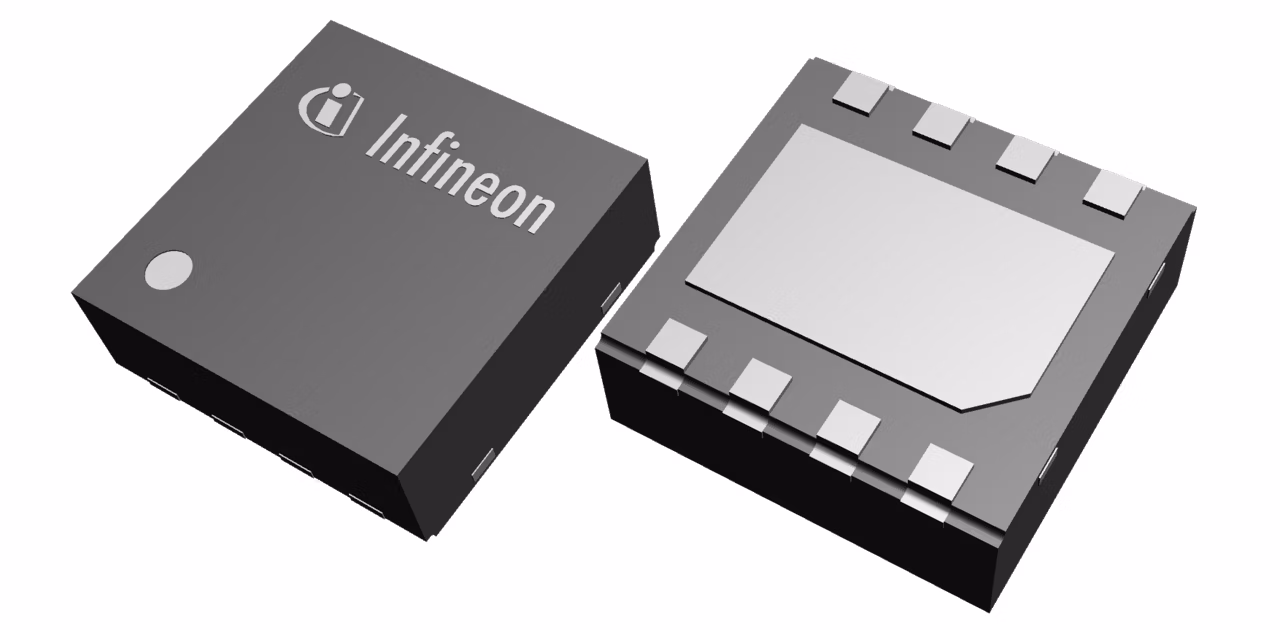

TLE9250VLE
  • TLE9250VLE

TLE9250VLE

Active and preferred

TLE9250VLE: ISO11898, SAE J1939, J2284-4/5 compliant. RoHS packages: PG-TSON-8, PG-DSO-8. ESD robustness, RF immunity for automotive use. Low EME, meets EMC test limits. Supports CAN FD up to 5 MBit/s. Fail-safe features: overtemperature protection, current limitation, TxD timeout. Ideal passive behavior when not supplied.

Infineon Technologies TLE9250VLE Product Info

16 April 2026 0

Parameters

Additional Features

NEN; Vio

Base Product

TLE925x

Bus Wake-Up Capability

No

Family

CAN Transceiver

Features

NEN, Tiny Package, Vio

Language

IBIS

Planned to be available until at least

2039

Product Category

Transceivers

Qualification

Automotive

Quiescent Current

< 15 µA at 5 V standby

Standards

ISO11898-2

Supply Voltage

3.3 V, 5 V

Transmission Rate max

5 MBit/s

Type

CAN, CAN FD

Wake-up Inputs

None

Apps

Multi-purpose camera, Electric brake booster, Electric power steering (EPS), Chassis domain control

Features

  • Fully compliant to ISO 11898-2 (2016)
  • Guaranteed symmetry for 5MBit/s CAN FD
  • Low EME for choke-free use
  • VIO input for 3.3V/5V voltage adaption
  • Power-save mode
  • Tiny leadless PG-TSON-8 for AOI
  • Extended supply range on the V CC
  • TxD time-out function
  • Wide range for electromagnetic immunity
  • Low CAN bus current in power-down
