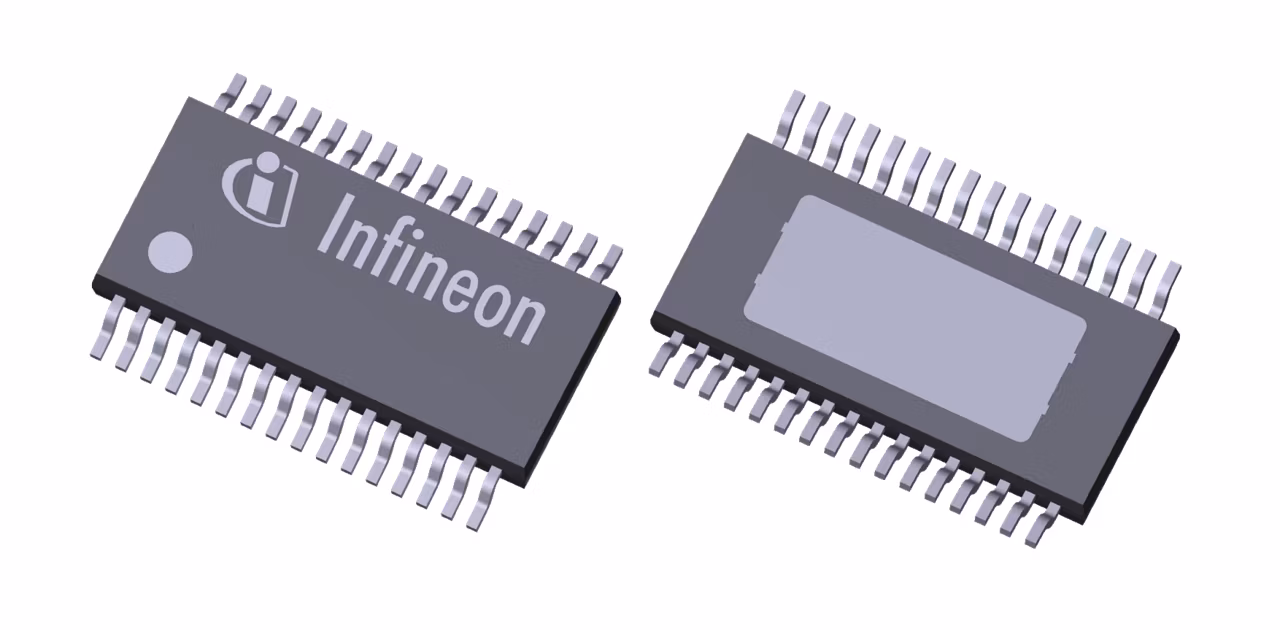

TLE9166EQ
  • TLE9166EQ

TLE9166EQ

Active and preferred

MOTIX™ TLE9166EQ multi half-bridge IC is perfectly suited for door lock, safe lock, mirror fold and adjustment functionalities, offering precise and accurate motor control for optimized performance. MOTIX™ TLE9166EQ offers a compact solution with small package and inrush current (IC) management for DC motors, incandescent bulbs and LEDs, ensuring seamless integration and optimized power delivery.

Infineon Technologies TLE9166EQ Product Info

16 April 2026 0

Parameters

Classification

QM

MCU

No

Planned to be available until at least

2039

Power Stage

Yes

Qualification

Automotive

Supply Voltage absolute max ratings

40 V

Features

  • Supply voltage range 5.5 V – 20 V (ext. 40 V)
  • 6 half-bridges with configurable slew rate ‒ 25 kHz capable
  • 5 high-side switches
  • SPI interface
  • MOSFET drivers for electrochromic mirror and mirror heater

Description

  • High config. & detailed diagnostics
  • Compact solution & INC bulbs with IC
  • HS switches for LED module control
  • Scalable module integration for ZDC
