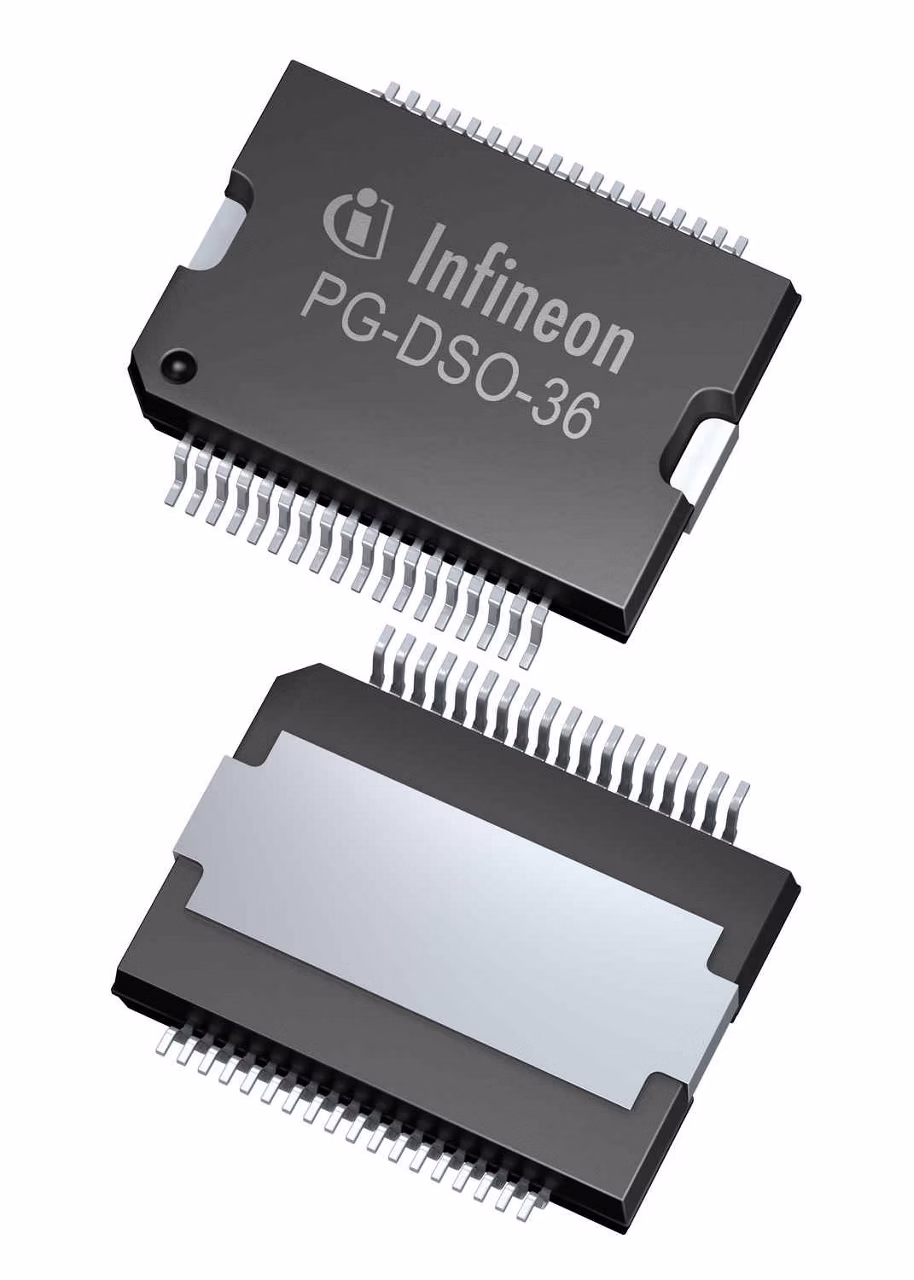

TLE8718SA
  • TLE8718SA

TLE8718SA

Active and preferred

It's equipped with the Micro Second Channel (MSC) communication interface for High Speed control and diagnosis. All channels are protected against over-current/temperature and enhanced with an active clamping circuitry for driving inductive loads. Load status detection is possible over the MSC for: Short to GND (SCG), Open Load (OL), and Short to Battery (SCB).

Infineon Technologies TLE8718SA Product Info

16 April 2026 14

Parameters

Channels

18

Comments

inductive and resistive loads (e.g. Solenoids, Injectors, Valves, Relays, LED, O2 Heater)

High Side / Low Side

0/18

ID(lim)(multiple)

2x 8.0 ; 2x 3.0 ; 8x 2.2 ; 2x 2.2 ; 4x 0.6 A

Operating Temperature range

-40 °C to 150 °C

Over Current Protection

Selectable

Pin Count

36 Pins

Planned to be available until at least

2037

RDS (on) (multiple)

2 X 0.2; 4 X 0.24; 2 X 0.35; 2 X 0.47; 4 X 0.72 (typ @ 150°C)

Thermal Class

Heatslug down

toff max

15 µs

ton max

15 µs

VDD

5.0 V

VDS(CL) range

50 V to 60 V

Apps

Electric vehicle drivetrain system, Fuel-cell control unit (FCCU)

Features

  • 23MHz Micro Second Channel
  • 2x Low-Voltage operation channels
  • Active Clamping
  • Supply Voltage Monitoring
  • Bi-Directional Reset-Pin (ABE)
  • Dedicated Delayed Disable for Injectors
  • Selectable Over-Current Protection
  • Short Circuit Protection (up to 36V)
  • Battery Over-Voltage Protection
  • Over-Temperature Protection
  • Over-Temperature Warning

Description

  • High Current Capability
  • Optimized for High-End Engines
  • Efficient Power Package
  • Full Protection
  • Full Diagnosis
  • MSC High-Speed communication
