TLE8366EV
  • TLE8366EV

TLE8366EV

Active and preferred

The TLE8366 series includes voltage options (5.0V and 3.3V) and a variable voltage variant (600 mV reference). Wide input voltage range (4.75V to 45V) suits many applications. Safety features include current limitation, over-temperature shutdown, and input under voltage lockout. Enable function enables efficient power management. Voltage regulation loop ensures excellent regulation. Integrated soft-start prevents voltage overshoot during startup.

Infineon Technologies TLE8366EV Product Info

16 April 2026 0

Parameters

Base Product

TLE8366EVxx

Budgetary Price €/1k

1.11

Comments

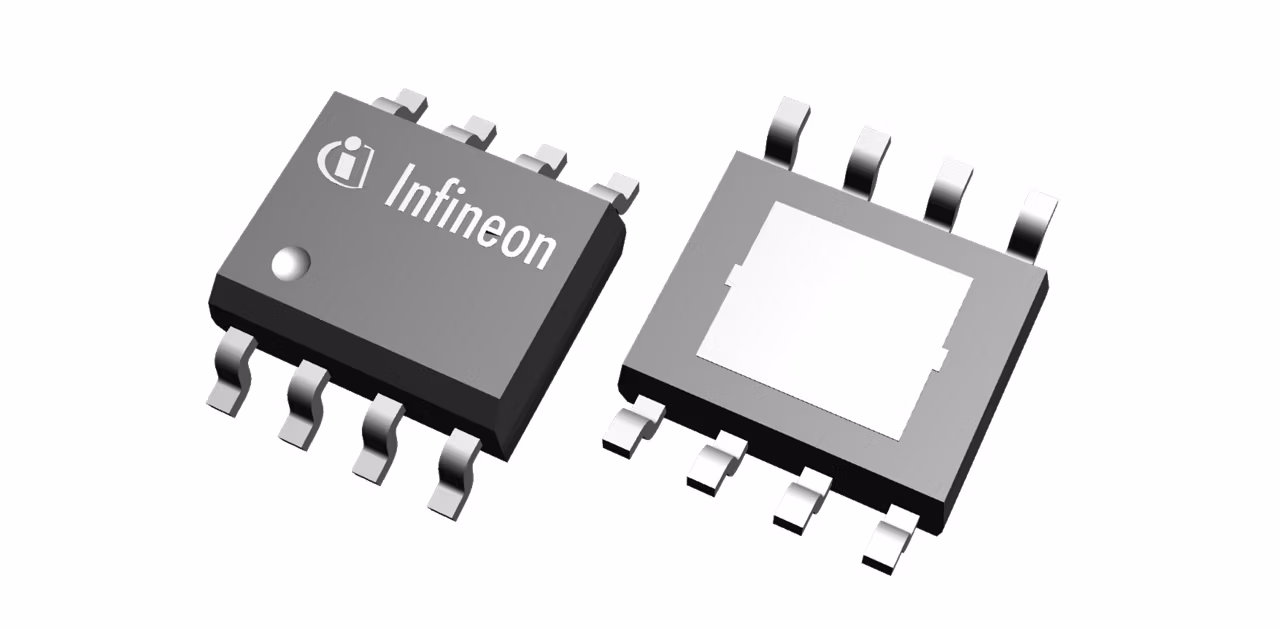

Automotive Step-down converter in robust DSO-8 EP package

Family

OPTIREG™ Switcher

Inhibit

Yes

IQ max

1800 mA

Iq

7000 µA

Mounting

SMT

Operating Temperature range

-40 °C to 150 °C

Output Current Type

Buck Converter

Planned to be available until at least

2034

Product Name

TLE8366EV

Protect

Yes

Regulator Type

Buck Converter

Reset

No

Tolerance

2(4)%

VQ (multiple)

adjustable

Watchdog

No

Apps

Automotive gateway, Automotive body control module (BCM), Automotive battery management system (BMS) - 48 V, EV traction inverter

Features

  • 1.8A step down voltage regulator
  • Adjustable output V: 0.6 V up to 16V
  • ± 2% output voltage tolerance
  • Integrated power transistor
  • PWM regulation with feedforward
  • Input voltage range from 4.75V to 45V
  • Synchronization input
  • Very low shutdown current consumption
  • Soft-start function
  • Input undervoltage lockout
  • Suited for automotive:Tj=-40°C to +150°C

Description

  • Easy to implement
  • No overshoot at start-up
