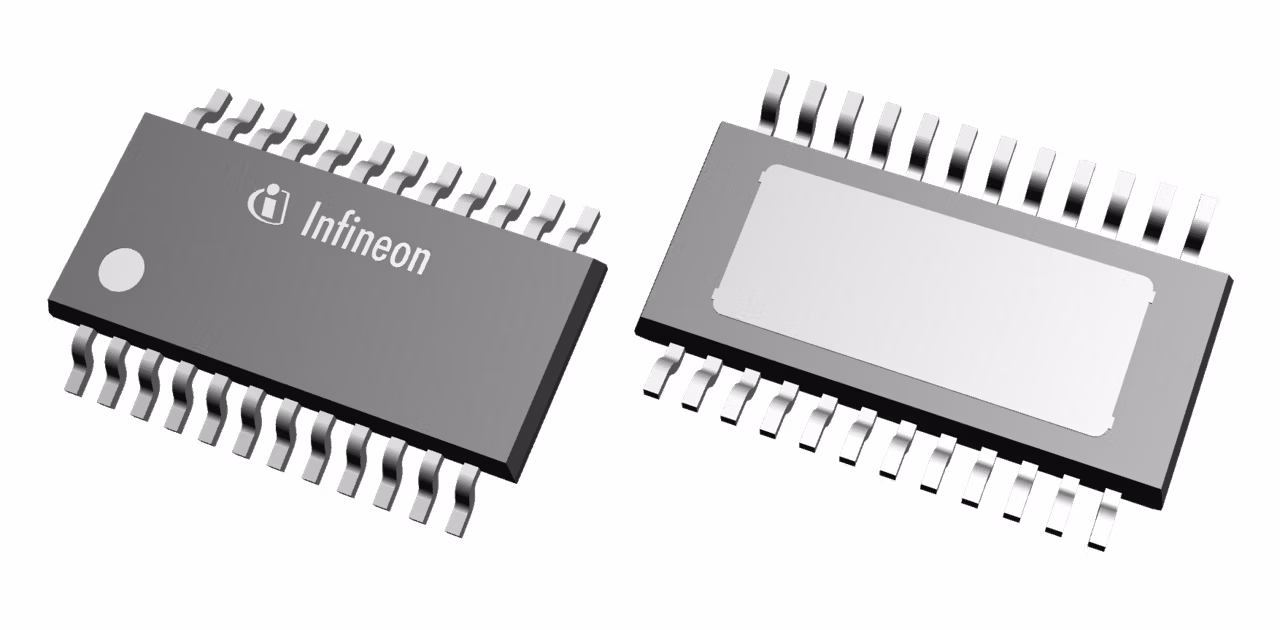

TLE75242-ESD

Active and preferred

It is specially designed to control relays and LEDs in automotive and industrial applications. A serial peripheral interface (SPI) is utilized for control and diagnosis of the loads as well as of the device. For direct control and PWM there are two input pins available connected to two outputs by default. Additional or different outputs can be controlled by the same input pins (programmable via SPI).

Infineon Technologies TLE75242-ESD Product Info

16 April 2026 0

Parameters

Channels	8
Configurable Channels	2
Cranking mode	Yes
Daisy-Chain Capability	Yes
Family	SPIDER+
ID (multiple)	330.0 mA
ID(lim) min	1 A
Limp Home Feature	Yes
Mounting	SMT
Open Load Detection	Off
Open Load Disable Function	Yes
Operating Temperature range	-40 °C to 150 °C
Over Current Protection	Shutdown
Overload shutdown	Yes
Planned to be available until at least	2037
PWM Inputs	2
Quiescent Current max	5 µA
RDS (on) (@ Tj = 25°C)	1 Ω
Short GND Detection	Yes
SPI	16 Bit
Standby Mode	Yes
Undervoltage Shutdown	Yes
VDD	3.0-5.5 V
VDS(CL) range	42 V to 55 V

Apps

Domain controller for ADAS & autonomous driving, Automotive body electronics & power distribution, Automotive body control module (BCM), On-board charging (OBC)

Features

16-bit SPI for control & diagnosis
Daisy Chain capability SPI
2 CMOS compatible parallel input pins
Cranking capability down to VS = 3.0 V
Digital supply V R compatible with 3.3 V
Independent High-Side Channels:VS_HS Pin
low quiescent current with usage of IDLE
Limp Home mode with IDLE and IN pins
Green Product (RoHS compliant)
AEC Qualified
