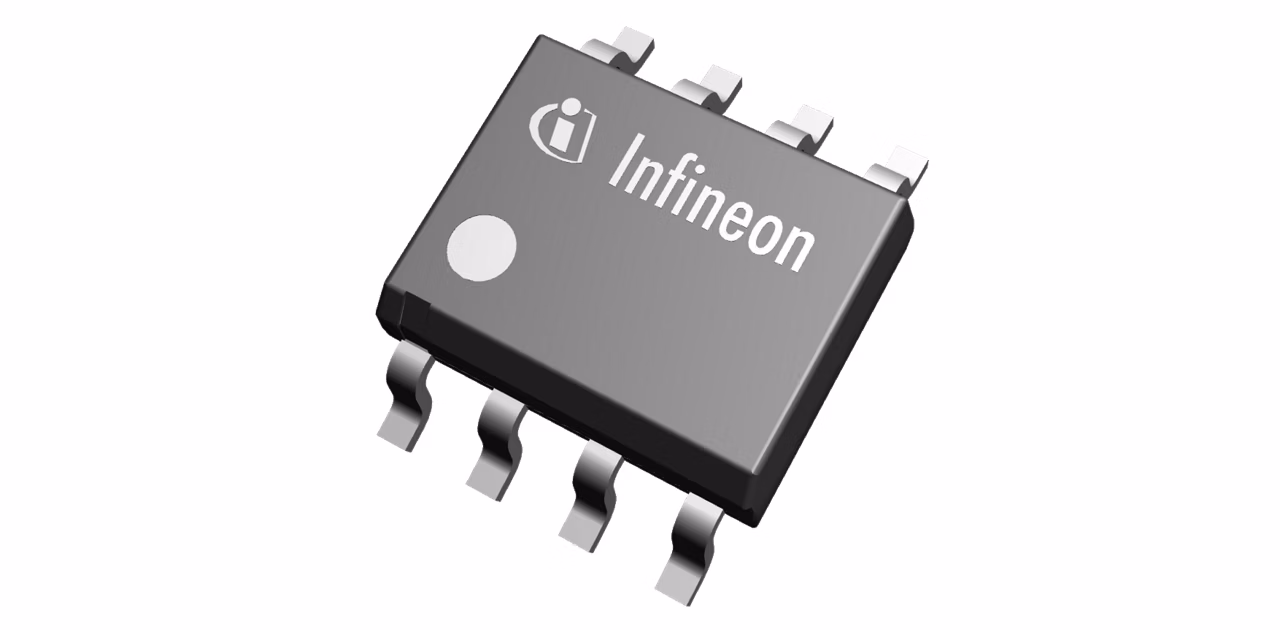

TLE7251VSJ
  • TLE7251VSJ

TLE7251VSJ

The TLE7251V functions as a bridge between the physical bus layer and the CAN protocol controller. It ensures low electromagnetic emission, supports data rates up to 2 MBit/s, and offers a standby mode. With excellent ESD immunity, it's well-suited for large automotive networks. The TLE7251V comes in small, leadless packages, complies with ISO11898-2, and is tailored for harsh automotive conditions.

Infineon Technologies TLE7251VSJ Product Info

16 April 2026 0

Parameters

Additional Features

STB, Vio

Base Product

TLE725x

Bus Wake-Up Capability

Yes

Family

CAN FD 2MBit/s

Features

Vio, STB

Product Category

Transceivers

Qualification

Automotive

Quiescent Current

< 14 µA at 5 V standby

Standards

ISO11898-5

Supply Voltage

3.3 V, 5 V

Transmission Rate max

2 MBit/s

Type

CAN, CAN FD

Wake-up Inputs

Bus Wake-up

Features

  • Fully compliant to ISO11898-2/-5
  • Wide common mode range for electromagnetic immunity (EMI)
  • Very low electromagnetic emission (EME)
  • Excellent ESD robustness
  • Guaranteed loop delay symmetry to support CAN FD data frames up to 2 MBit/s
  • V IO input for voltage adaption to the microcontroller supply
  • Extended supply range on V CC and V IO supply
  • CAN short circuit proof to ground, battery and V CC
  • TxD time-out function
  • Low CAN bus leakage current in power-down state
  • Overtemperature protection
  • Protected against automotive transients
  • Stand-by mode with remote wake-up function
  • Wake-up indication on the RxD output
  • Transmitter supply V CC can be turned off in stand-by mode
  • Green Product (RoHS compliant)
  • Two package variants: PG-TSON-8 and PG-DSO-8
  • AEC Qualified
