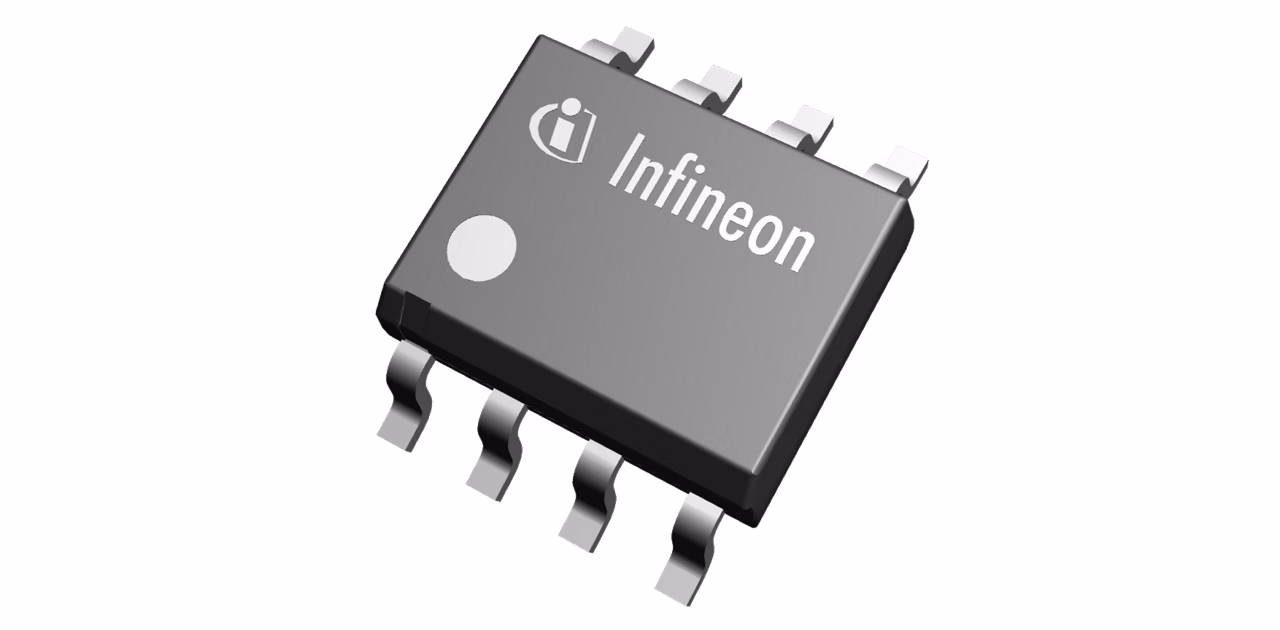

TLE6251DS
  • TLE6251DS

TLE6251DS

Introducing the TLE6251DS CAN-transceiver, designed for high-speed data transmission in automotive and industrial applications. It offers improved passive behavior, remote wake-up capability, normal and stand-by modes, and robustness for 12 V and 24 V applications. Utilizing Smart Power Technology SPT®, it integrates bipolar and CMOS control circuitry for enhanced performance.

Infineon Technologies TLE6251DS Product Info

16 April 2026 0

Parameters

Additional Features

STB, SPLIT

Base Product

CAN Classic

Bus Wake-Up Capability

Yes

Family

Classical CAN 1MBit/s

Features

SPLIT, STB

Planned to be available until at least

n.a

Product Category

Transceivers

Qualification

Automotive

Quiescent Current

< 30 µA at 5 V standby

Standards

ISO11898-5

Supply Voltage

5 V

Transmission Rate max

1 MBit/s

Type

CAN

Wake-up Inputs

Bus Wake-up

Features

  • CAN data transmission rate up to 1 Mbaud
  • Compliant to ISO11898-2/-5
  • Supports 12 V and 24 V automotive applications
  • Low power mode with remote wake-up via CAN bus
  • Wake signaling by RxD change
  • No BUS load in stand-by mode
  • Wide common mode range for electromagnetic immunity (EMI)
  • Digital inputs compatible to 3.3 and 5 V logic devices
  • CAN short circuit proof to ground, battery and V CC
  • Split termination to stabilize the recessive level
  • TxD time-out function
  • Overtemperature protection
  • Protected against automotive transients
  • Green Product (RoHS compliant)
  • AEC Qualified
