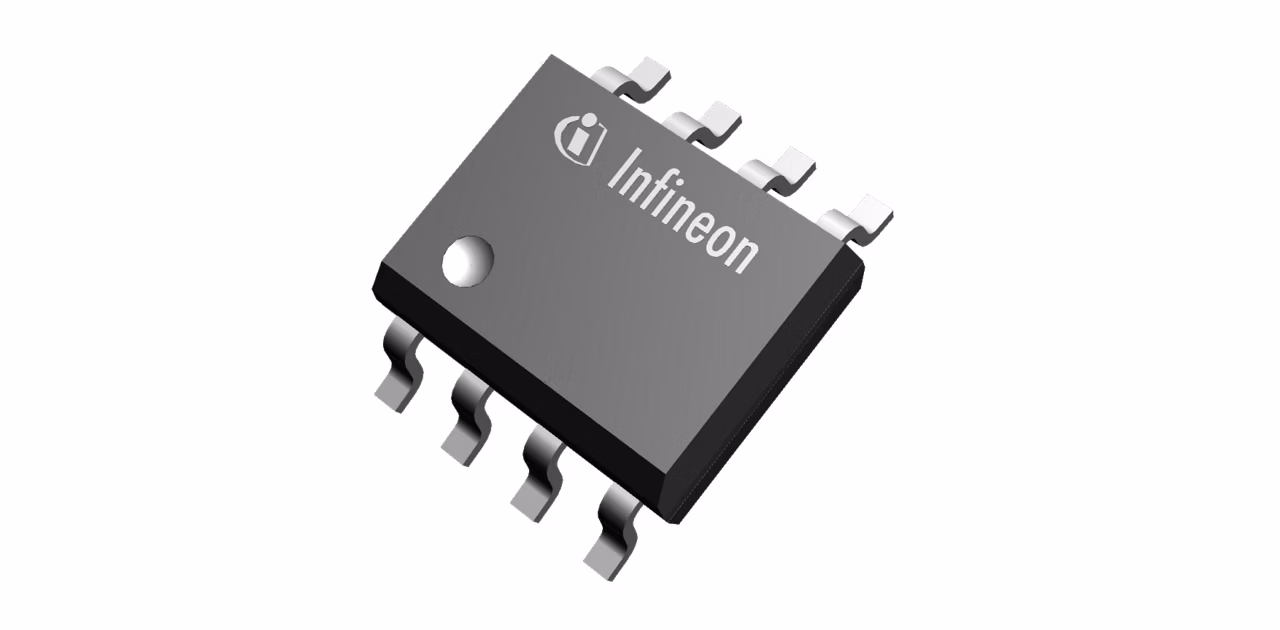

TLE6250G V33
  • TLE6250G V33

TLE6250G V33

The TLE6250 (TLE6250G and TLE6250GV33) HS CAN-transceiver family are monolithic integrated circuits for high-speed differential mode data transmission in automotive and industrial applications. They serve as an interface between the CAN protocol controller and the physical differential bus in 12V and 24V systems. The TLE6250G is specifically designed for automotive applications, providing excellent EMC performance.

Infineon Technologies TLE6250G V33 Product Info

16 April 2026 0

Parameters

Additional Features

INH, Vio

Base Product

CAN Classic

Bus Wake-Up Capability

No

Family

Classical CAN 1MBit/s

Features

INH Output Input, Vio

Planned to be available until at least

n.a

Product Category

Transceivers

Qualification

Automotive

Quiescent Current

< 10 µA at 5 V standby

Standards

ISO11898-2

Supply Voltage

5 V, 3.3 V

Transmission Rate max

1 MBit/s

Type

CAN

Wake-up Inputs

None

Apps

Electric vehicle drivetrain system, On-board charging (OBC), Automotive head unit, Battery energy storage (BESS), Domestic robots

Features

  • CAN data transmission rate up to 1 MBaud
  • Receive-only Mode and Stand-by Mode
  • Suitable for 12 V and 24 V applications
  • Excellent EMC performance (very high immunity and very low emission)
  • Version for 5 V and 3.3 V microcontrollers
  • Bus pins are short circuit proof to ground and battery voltage
  • Overtemperature protection
  • Very wide temperature range (-40 °C up to 150 °C)
  • Green Product (RoHS compliant)
  • AEC Qualified
