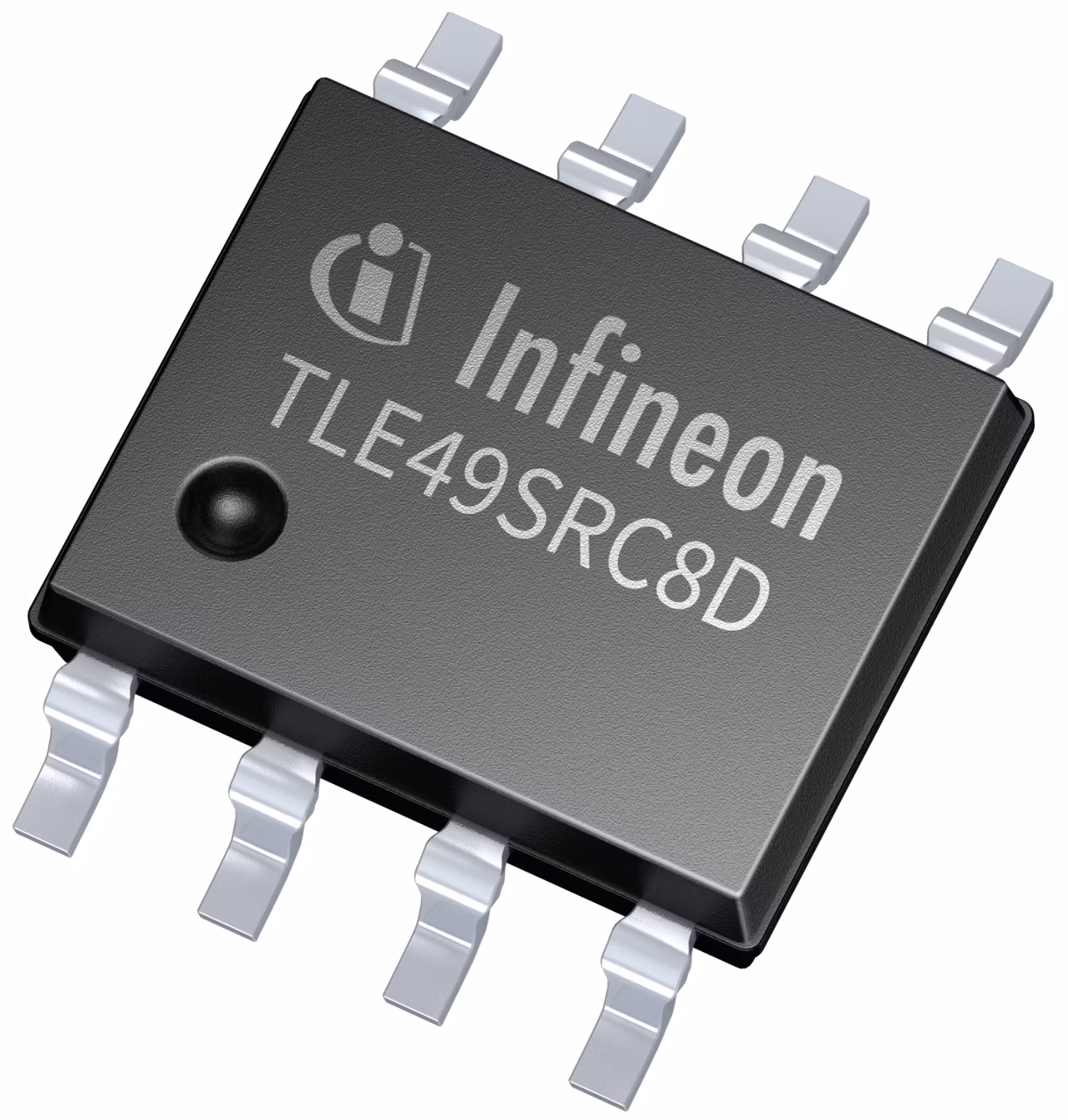

TLE49SRC8D
  • TLE49SRC8D

TLE49SRC8D

Active and preferred

The TLE49SRC8D includes a comprehensive set of on-chip components, including spatially separated Hall- , temperature-, and stress sensors, as well as a signal conditioning circuit, analog-to-digital converters, and a digital signal processor. Additionally, the IC includes a clock, voltage regulators and internal protection circuitry to ensure safe and reliable operation.

Infineon Technologies TLE49SRC8D Product Info

16 April 2026 0

Parameters

Classification

ISO 26262-compliant

Interfaces

SPC

Magnetic field range

10 mT to 90 mT

Package

SMD

Supply Voltage range

-21 V to 26 V

Technology

Hall

Temperature range

-40 °C to 150 °C

Features

  • Stray field Immunity (ISO 11452-1:2015)
  • Excellent angle performance
  • Very low jitter delay ±1µs
  • Very fast response time 9.8µs ~ 26ms
  • EEPROM for customized configuration
  • ISO 26262-compliant, ASIL D

Description

  • No need of external shielding
  • Angle error < 0.5° with Look-Up table
  • For Highly responsive, fast systems
  • Easy design with flexibility
  • Frame holder mechanism for SPC-sensors
  • Dual die for redundant ASIL D systems
