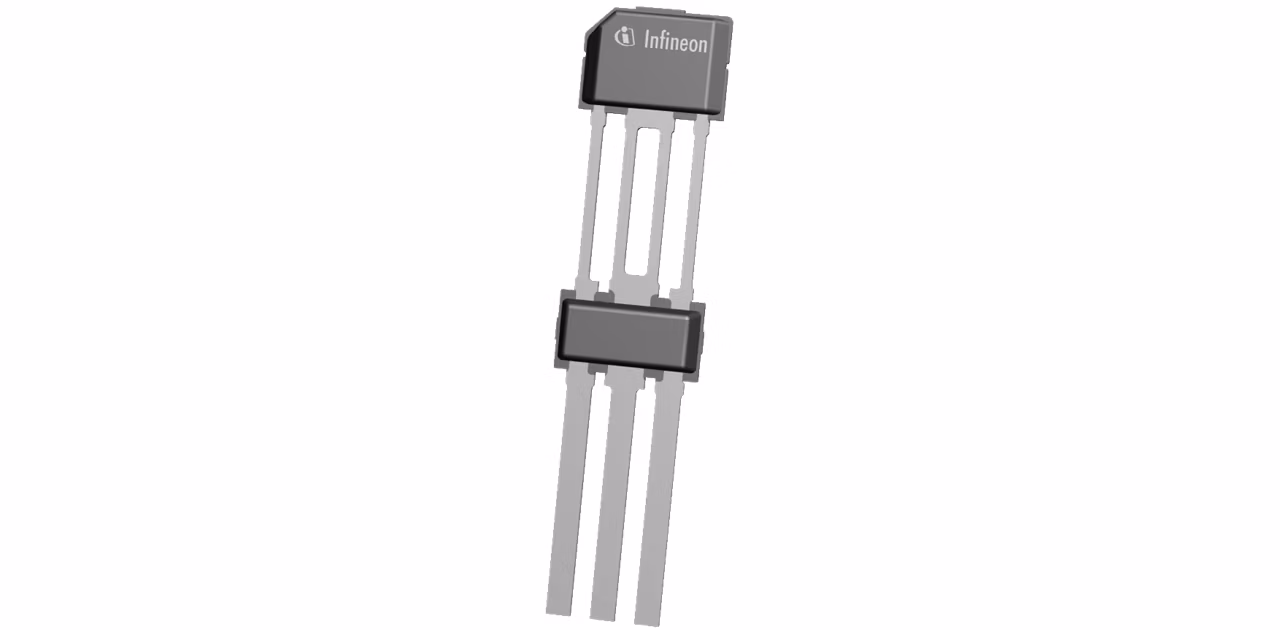

TLE4986C-XTS-M47D
  • TLE4986C-XTS-M47D

TLE4986C-XTS-M47D

Active and preferred

Ideal for camshaft & speedometer applications. Maps tooth/notch to unique electrical output. Electrical trimming ensures power-on capability despite production spreads. Self-calibration for accuracy. Three-pin package with open drain output. Three derivatives available: TLE4986C-XAS-M47 (standard algorithm), TLE4986C-XTS-M47 (standard & individual threshold algorithm), TLE498C-XTS-M47D (standard & individual threshold algorithm, EEPROM chip-ID).

Infineon Technologies TLE4986C-XTS-M47D Product Info

16 April 2026 0

Parameters

Additional Information

TC_magnet -600ppm/K, IST algorithm, EEPROM-ID

Applications

Camshaft

C Package Available

Yes

Chopped Monocell

Yes

Direction Detection

No

Enhanced ESD

Yes

Green

RoHS compliant

Interfaces

Voltage

Planned to be available until at least

2039

Programmable

Yes

Technology

Hall

True Power On

Yes

Type of Hysteresis

hidden fixed/adaptive

Vibration Suppression

No

Apps

Electric vehicle drivetrain system

Features

  • Speed/phase of pole/tooth wheels measure
  • Digital output signal(voltage interface)
  • Mono-cell chopped Hall system
  • TPO True Power On functionality
  • TIM Twisted Independent Mounting
  • Dynamic self-calibrating algorithm
  • Programmable EOL switch points
  • EEPROM for various algorithm options
  • TC of back-bias magnet pre-programmed
  • High resistance to mechanical stress
  • Enhanced immunity against ESD and EMC
