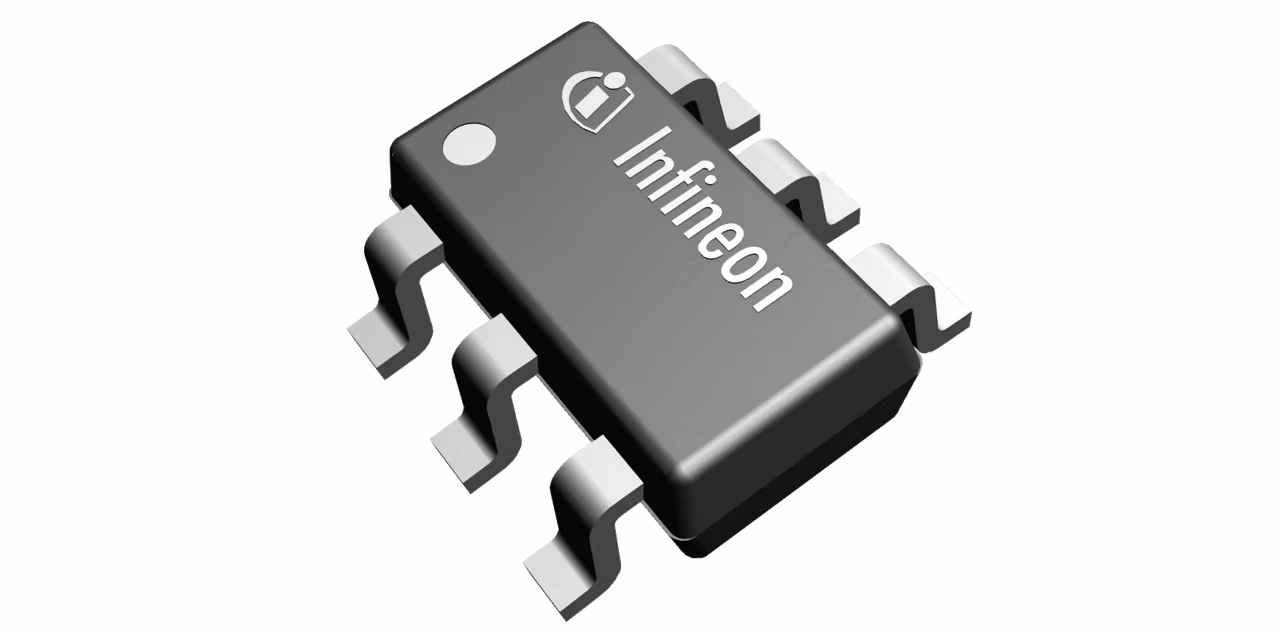

TLE4966-3G
  • TLE4966-3G

TLE4966-3G

Active and preferred

XENSIV™ TLE4966xG is double Hall latch with two output pins for applications with a rotating pole wheel. It provides speed and direction signals or two speed signals, useful for anti-pinch prevention. On-chip Hall plates cancel out mounting uncertainties and reduce system tolerances, making additional algorithms for direction detection unnecessary. Built-in direction detection is reliable, providing a valid direction signal with each index step.

Infineon Technologies TLE4966-3G Product Info

16 April 2026 0

Parameters

Bhyst

5 mT

Bop

2.5 mT

Brp

-2.5 mT

Interfaces

open collector

Planned to be available until at least

2034

Product Description

High precision automotive qualified dual Hall latch in a gullwing package

Supply Voltage range

2.7 V to 24 V

Temperature range

-40 °C to 150 °C

Type

Double Hall

Apps

Automotive body control module (BCM), Door control module, Consumer electronics

Features

  • 2.7V to 24V supply voltage operation
  • Operation from unregulated power supply
  • Magnetic switch: high sens/stability
  • Active Error Comp for stress resistance.
  • Reverse battery protection (-18V)
  • Superior temperature stability
  • Low jitter (typ. 1μs)
  • Digital output signals
  • Excellent matching of the 2 Hall probes
  • Hall plate distance 1.45mm
  • Speed and direction output signal
