TLE493D-P3B6 A1
  • TLE493D-P3B6 A1

TLE493D-P3B6 A1

Active and preferred

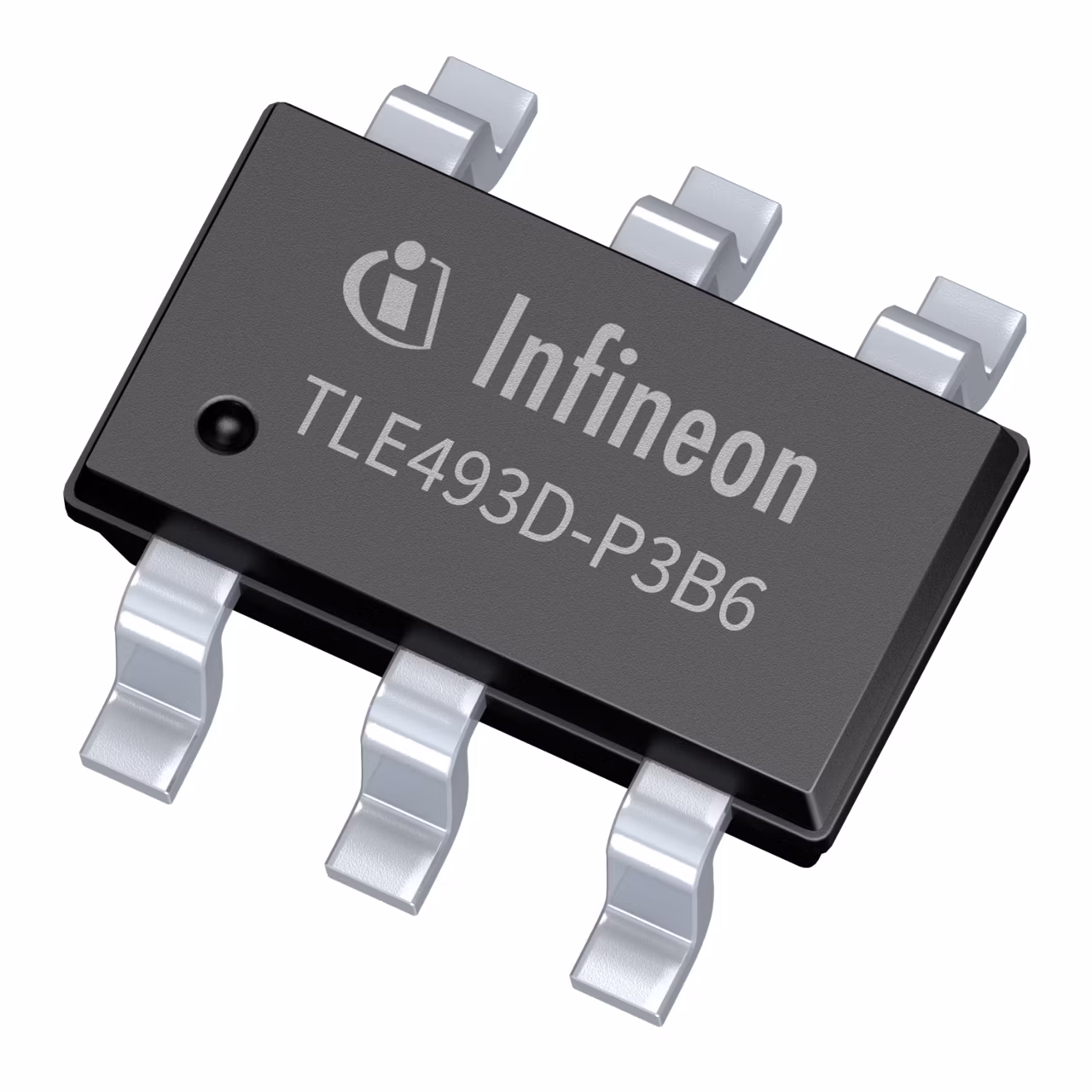

XENSIV™ TLE493D-P3B6 is a magnetic 3D Hall sensor from Infineon’s latest generation. Part of the TLE493D-x3xx family, it offers a wider supply voltage range, full ISO26262 compliance, and improved drift values. TLE493D-P3B6 A1 is preconfigured with a specific I2C address to enable operation in bus mode. This capability enables up to 4 sensors to share the same bus. All features and target applications are identical to TLE493D-P3B6 A0.

Infineon Technologies TLE493D-P3B6 A1 Product Info

16 April 2026 0

Parameters

Additional Information

improved accuracy

Classification

ISO 26262-compliant, AEC-Q100

Interfaces

I²C

Planned to be available until at least

2038

Pre-Programed Init Address

Yes

Target Application

Automotive

Wake-Up Functionality

Yes

Features

  • Best accuracy package-size fit
  • Supply voltage 3.3 V and 5 V
  • ISO 26262 compliant (ASIL B)
  • Magnetic field range selectable
  • Extended precision
  • Wake-up feature
  • Integrated temperature measurement
  • Operating temperature -40°C to 150°C
  • I2C interface
  • available with different I2C addresses

Description

  • Broad application range
  • Small PCB footprint
  • Wide supply voltage range (2.8…5.5V)
  • Enables cost efficient magnetic design
  • Functional safety support
  • Low power consumption
  • Demo-boards, code examples available
