TLE4253E
  • TLE4253E

TLE4253E

Active and preferred

IC designed for automotive applications, supplying off-board systems like sensors in engine management. Additional protection against reverse polarity and short circuit. Output voltage follows reference voltage with high accuracy. Input reference voltage can be 2.0 V or higher. Output can drive loads up to 250 mA. Shutdown mode reduces quiescent current. Suitable for low-power battery applications.

Infineon Technologies TLE4253E Product Info

16 April 2026 0

Parameters

Accuracy

0.5 %

Base Product

TLE4253xx

Dropout Voltage

280 mV

Early Warning

No

Enable (=Inhibit)

Yes

Family

OPTIREG™ linear Trackers

Hold

No

Operating Temperature range

-40 °C to 150 °C

Operating Voltage range

3.5 V to 40 V

Output Current max

250 mA

Output Voltage Type

Tracking

Over Voltage Protection

No

Planned to be available until at least

2038

Power Fail

No

Power Good

No

Qualification

Automotive

Quiescent Current

120 µA

Regulator Type

Trackers

Reset

No

Status Output

No

Watchdog

No

Apps

Automotive, Automotive body control module (BCM), EV traction inverter, On-board charging (OBC)

Features

  • Tight output tracking tolerance
  • Output voltage adjust down to 2.0 V
  • Stable with ceramic output capacitor
  • Flexibility of output voltage
  • 250 mA output current capability
  • Low dropout voltage
  • Very low current consumption in OFF mode

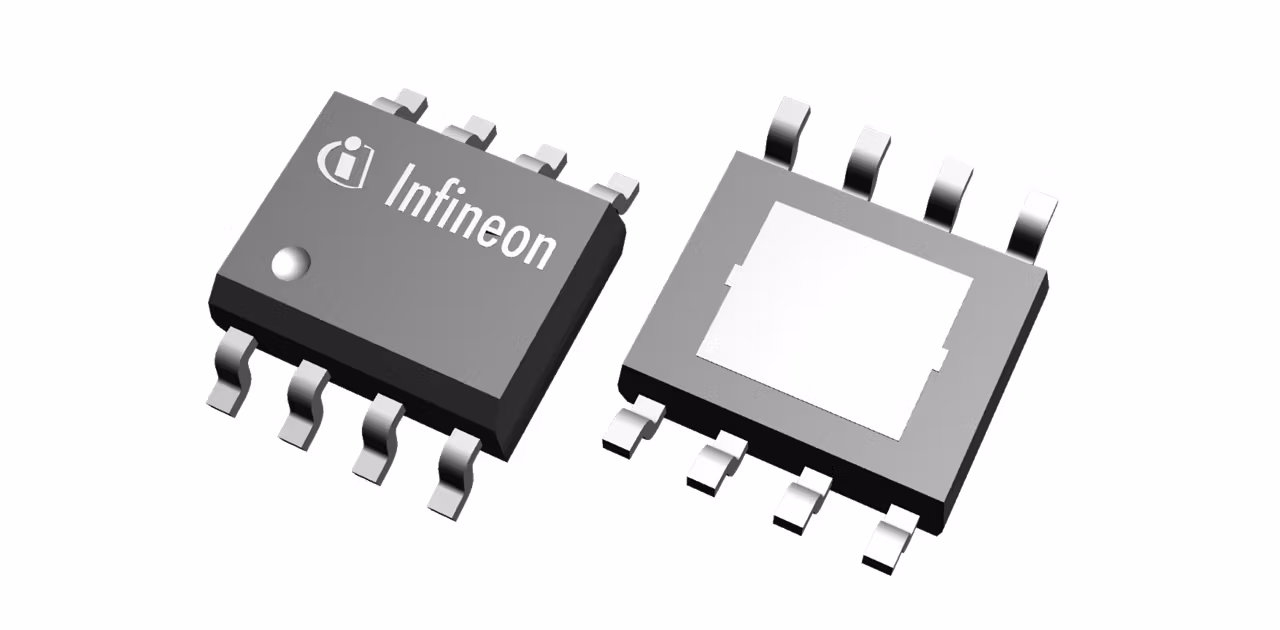

  • PG-DSO-8 packages
  • input voltage range -42 V to 45 V
  • Wide temperature range: -40 °C to 150 °C
  • Output short circuit to GND and battery

Description

  • Efficient and accurate V replication
  • Robust tracking power supply
