TLD5095EL

Infineon Technologies TLD5095EL Product Info

16 April 2026 0

fSW range	100 kHz to 500 kHz
Inhibit	Yes
Iq	10 µA
Open Load Detection	Yes
Operating Temperature range	-40 °C to 150 °C
PWM	Yes
Short Circuit Protection	Yes
Tolerance	3.3%
Topology	DC-DC Boost, Buck, Sepic, Buck-Boost, Flyback
VS range	4.75 V to 45 V

Single-Channel Multitopology (B2B, B2G, SEPIC, Flyback) DC-DC Controller
Constant Current or Constant Voltage Regulation
Wide Input Voltage Range from 4.75 V to 45 V
Very Low Shutdown Current: IQ< 10 μA
Switching Frequency Range from 100 kHz to 500 kHz
Synchronization with external clock source
Output Open Circuit Diagnostic Output
PWM Dimming
Internal Soft Start
300mV High Side Current Sense to ensure highest flexibility and LED current accuracy
Internal 5 V Low Drop Out Voltage Regulator
Wide LED current range via simple adaptation of external components
Output Overvoltage Protection
Over Temperature Shutdown

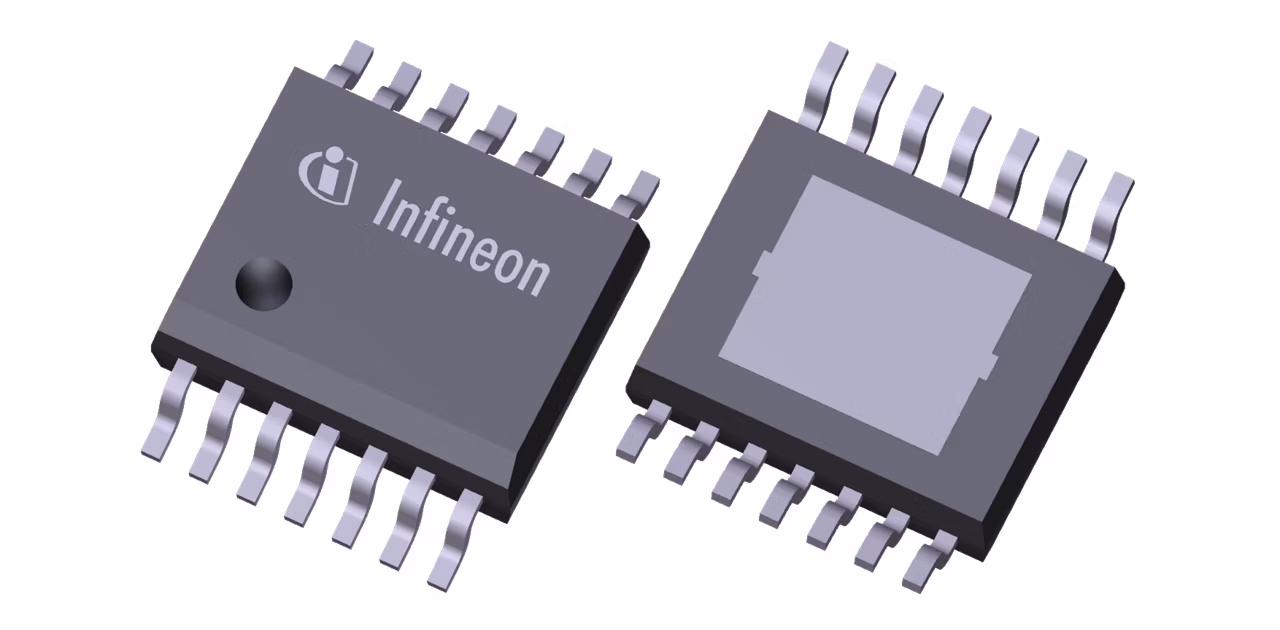

Available in a small thermally enhanced PG-SSOP-14 package
Automotive AEC Qualified
