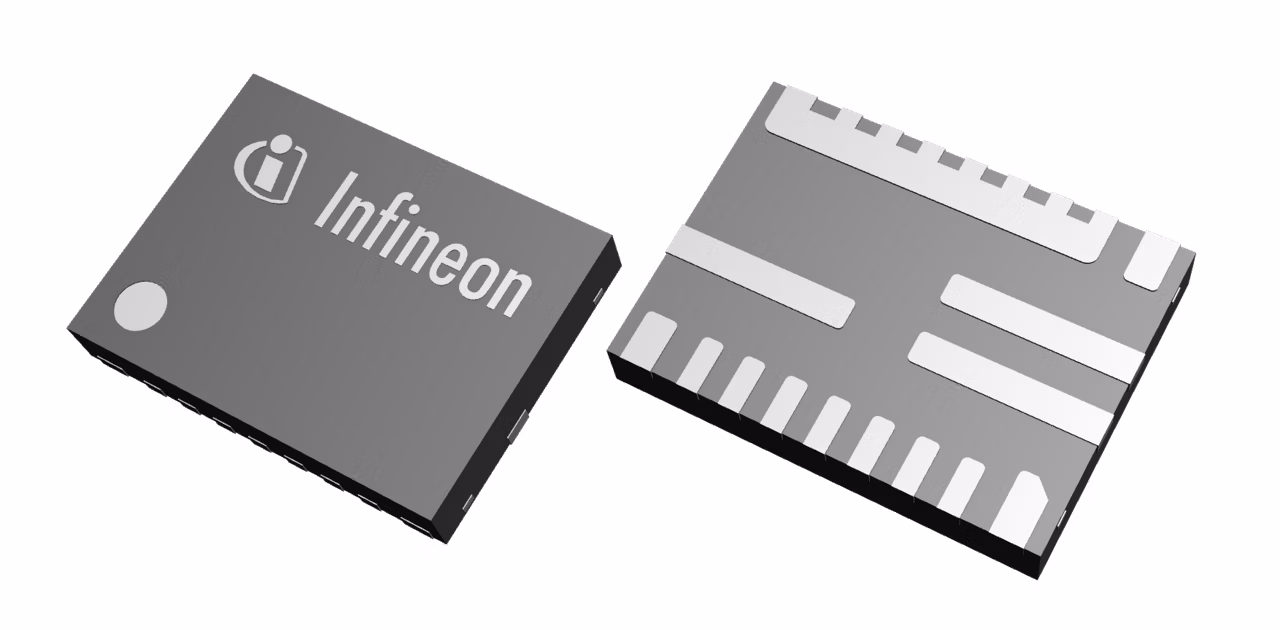

TDA38825
  • TDA38825

TDA38825

Active and preferred

The TDA38825 is a 20 A fully integrated and highly efficient DC-DC buck regulator. It uses a fast Constant On-Time (COT) control scheme, which simplifies the design efforts and achieves fast transient response while maintaining excellent line and load regulation. It can operate over a wide range of input voltage (2.7 V to 16 V) using an external bias supply.

Infineon Technologies TDA38825 Product Info

16 April 2026 0

Parameters

Accuracy

0.5 %

Additional Information

Vref = 0.6V +/- 0.5%

Design Tool

Tina Model

Early Warning

No

Family

Analog DC-DC Voltage regulator

Industrial 24V Input

No

Input Voltage range

2.7 V to 16 V

Internal Bias LDO

Yes

Iout max

20 A

Moisture Sensitivity Level

2

Number of Outputs

1

Operating Temperature range

-40 °C to 125 °C

Output Voltage range

0.6 V to 5.5 V

Over Voltage Protection

Yes

Package

PG-TSNP-21-1

Product Category

Analog

Qualification

Industrial

Regulator Type

Single Output

Switching Frequency range

600 kHz to 1000 kHz

Technology

FAST Constant On Time

Topology

Buck

Type

Single phase

Features

  • Wide input voltage range
  • No external compensation
  • Supports both FCCM and DEM mode
  • Programmable Fsw
  • Soft start
  • OCP limit
  • Enhanced protection features

Description

  • Support diverseend applications
  • Compact design
  • No external components
  • Efficiency at light/full load
  • Robust design and reliability
