Active and preferred
Clamping force [kn] range |
10.5 to 21 |
Configuration |

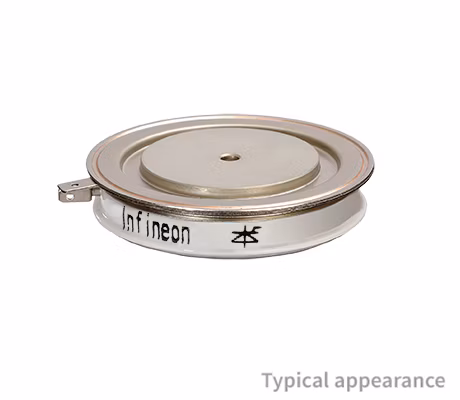

Electrical Triggered Phase Control Thyristor |
Housing |
Disc dia 58mm height 14mm / Ceramic |
ITAVM/TC [A/°C] (@180° el sin) |
745/85 |
ITAVM |
727 (180 ° el sin) |
ITSM [A] (@10ms, Tvj max) |
11500 |
ITSM |
11500 A |
rT [mΩ] (@Tvj max) max |
0.5 |
RthJC [K/kW] (@180° el sin) max |
28 |
tq [µs] |
300 |
Tvj [°C] max |
125 |
VDRM / VRRM [V] |
2600 |
VDRM/ VRRM (V) |
2600 V |
VT/IT [V/kA] (@Tvj max) |
2.53/2.85 |
VT0 [V] (@Tvj max) max |
1 |
∫I2dt [A²s · 103] (@10ms, Tvj max) |
660 |
