T560N16TOF
  • T560N16TOF

T560N16TOF

Active and preferred

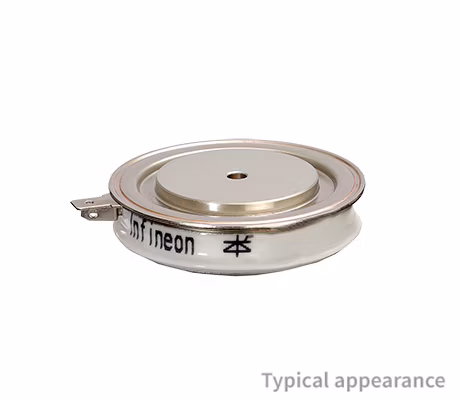

The T560N Phase Control Thyristor discs are assembled in high reliable, robust and hermetic sealed ceramic housings with a dia of 48mm and a height of 14mm.

Infineon Technologies T560N16TOF Product Info

16 April 2026 0

Parameters

Clamping force [kn] range

5 to 10

Configuration

Electrical Triggered Phase Control Thyristor

Housing

Disc dia 48mm height 14mm / Ceramic

ITAVM/TC [A/°C] (@180° el sin)

559/85

ITAVM

595 (180 ° el sin)

ITSM [A] (@10ms, Tvj max)

6900

ITSM

6900 A

rT [mΩ] (@Tvj max) max

0.6

RthJC [K/kW] (@180° el sin) max

44

tq [µs]

250

Tvj [°C] max

125

VDRM / VRRM [V]

1600

VDRM/ VRRM (V)

1600 V

VT/IT [V/kA] (@Tvj max)

1.92/1.6

VT0 [V] (@Tvj max) max

0.8

∫I2dt [A²s · 103] (@10ms, Tvj max)

238

Features

  • Full blocking capability 50/60 Hz
  • High DC blocking stability
  • High surge current capability
  • High turn-on di/dt capability
  • High dv/dt capability
