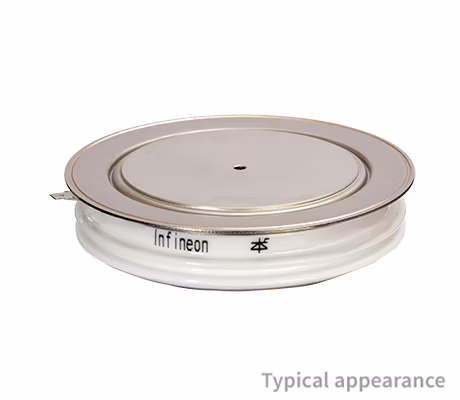

T2180N18TOF VT
  • T2180N18TOF VT

T2180N18TOF VT

Active and preferred

Phase Control Thyristor 1800 V, 2180 A with 100 mm diameter and a height of 26 mm assembled in high reliable, robust and hermetic sealed ceramic housings. The T2600N prime disc is specially optimized for UPS-Bypass applications and offers the highest current capability in the market. The T2600N18TOF prime disc is specially optimized for UPS-Bypass applications and offers the highest current capability in the market.

Infineon Technologies T2180N18TOF VT Product Info

16 April 2026 0

Parameters

Clamping force [kn] range

30 to 65

Configuration

Electrical Triggered Phase Control Thyristor

Housing

Disc dia 100mm height 26mm / Ceramic

ITAVM/TC [A/°C] (@180° el sin)

2180/85

ITAVM

2180 (180 ° el sin)

ITSM [A] (@10ms, Tvj max)

36000

ITSM

38000 A

rT [mΩ] (@Tvj max)

0.106

RthJC [K/kW] (@180° el sin) max

12.5

tq [µs]

250

Tvj [°C] max

125

VDRM / VRRM [V]

1800

VDRM/ VRRM (V)

1800 V

VT/IT [V/kA] (@Tvj max)

2.05/8.0

VT0 [V] (@Tvj max)

0.9

∫I2dt [A²s · 103] (@10ms, Tvj max)

7220

Apps

Automotive, DIN rail power supply solutions

Features

  • Full blocking capability 50/60 Hz
  • High DC blocking stability
  • High surge current capability
  • High turn-on di/dt capability
  • High dv/dt capability
