T2001N36TOF
  • T2001N36TOF

T2001N36TOF

Active and preferred

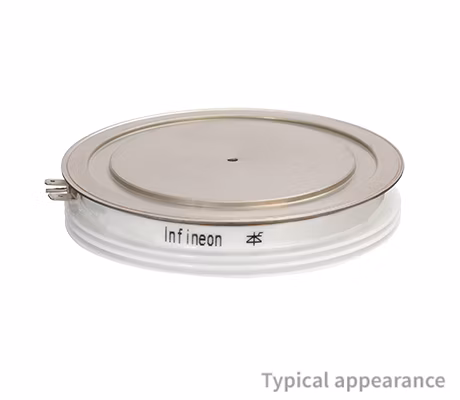

The T2001N Phase Control Thyristor discs are assembled in high reliable, robust and hermetic sealed ceramic housings with a dia of 120mm and a height of 26mm.

Infineon Technologies T2001N36TOF Product Info

16 April 2026 0

Parameters

Clamping force [kn] range

36 to 52

Configuration

Electrical Triggered Phase Control Thyristor

Housing

Disc dia 120mm height 26mm / Ceramic

ITAVM/TC [A/°C] (@180° el sin)

2060/85

ITAVM

2060 (180 ° el sin)

ITSM [A] (@10ms, Tvj max)

41000

ITSM

41000 A

rT [mΩ] (@Tvj max) max

0.25

RthJC [K/kW] (@180° el sin) max

8.7

tq [µs]

300

Tvj [°C] max

125

VDRM / VRRM [V]

3600

VDRM/ VRRM (V)

3600 V

VT/IT [V/kA] (@Tvj max)

1.50/2.0

VT0 [V] (@Tvj max) max

1

∫I2dt [A²s · 103] (@10ms, Tvj max)

8400

Features

  • Full blocking capability 50/60 Hz*
  • High DC blocking stability
  • High surge current capability
  • High turn-on di/dt capability
  • High dv/dt capability
  • *over a wide temperature range
