T1500N16TOF VT
  • T1500N16TOF VT

T1500N16TOF VT

Active and preferred

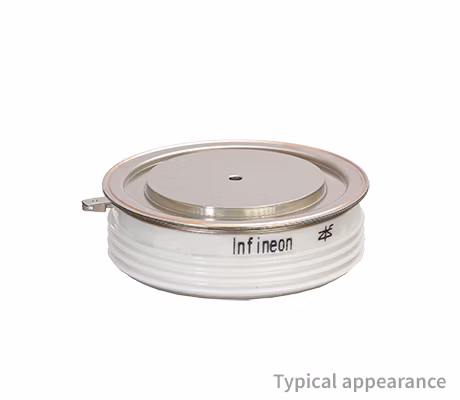

Phase Control Thyristor 1600 V, 1500 A with 75 mm diameter and a height of 26 mm assembled in high reliable, robust and hermetic sealed ceramic housings. The T1900N prime disc is specially optimized for UPS-Bypass applications and offers the highest current capability in the market.The T1900N16TOF prime disc is specially optimized for UPS-Bypass applications and offers the highest current capability in the market.

Infineon Technologies T1500N16TOF VT Product Info

16 April 2026 0

Parameters

Clamping force [kn] range

24 to 56

Configuration

Electrical Triggered Phase Control Thyristor

Housing

Disc dia 75mm height 26mm / Ceramic

ITAVM/TC [A/°C] (@180° el sin)

1500/85

ITAVM

1500 (180 ° el sin)

ITSM [A] (@10ms, Tvj max)

33500

ITSM

33500 A

rT [mΩ] (@Tvj max) max

0.15

RthJC [K/kW] (@180° el sin) max

18.4

tq [µs]

240

Tvj [°C] max

125

VDRM / VRRM [V]

1600

VDRM/ VRRM (V)

1600 V

VT/IT [V/kA] (@Tvj max)

2.10/7.0

VT0 [V] (@Tvj max) max

0.9

∫I2dt [A²s · 103] (@10ms, Tvj max)

5611

Apps

Traction, Wind power, Motor control, Uninterruptible power supplies (UPS)

Features

  • Full blocking capability 50/60 Hz*
  • High DC blocking stability
  • High surge current capability
  • High turn-on di/dt capability
  • High dv/dt capability
  • *over a wide temperature range
