T1400N16H75 VT
  • T1400N16H75 VT

T1400N16H75 VT

Active and preferred

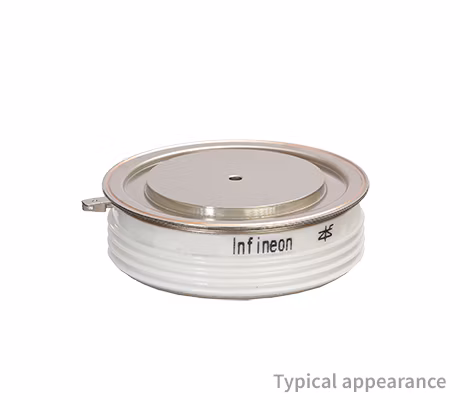

Phase Control Thyristor 1600 V, 1400 A with 75 mm diameter and a height of 26 mm in ceramic housing with AMPT technology.

Infineon Technologies T1400N16H75 VT Product Info

16 April 2026 0

Parameters

Clamping force [kn] range

24 to 56

Configuration

Electrical Triggered Phase Control Thyristor

Housing

Disc dia 75mm height 26mm / Ceramic

ITAVM/TC [A/°C] (@180° el sin)

1410/85

ITAVM

1410 (180 ° el sin)

ITSM [A] (@10ms, Tvj max)

29500

rT [mΩ] (@Tvj max) max

0.21

RthJC [K/kW] (@180° el sin) max

18.5

tq [µs]

230

Tvj [°C] max

125

VDRM / VRRM [V]

1600

VDRM/ VRRM (V)

1600 V

VT/IT [V/kA] (@Tvj max)

1.43/3.0

VT0 [V] (@Tvj max) max

0.8

∫I2dt [A²s · 103]

4351

Apps

Low-voltage drives

Features

  • Advanced medium power technology
  • Full blocking capability 50/60 Hz
  • High DC blocking stability
  • High turn-on di/dt capability
  • High dv/dt capability
