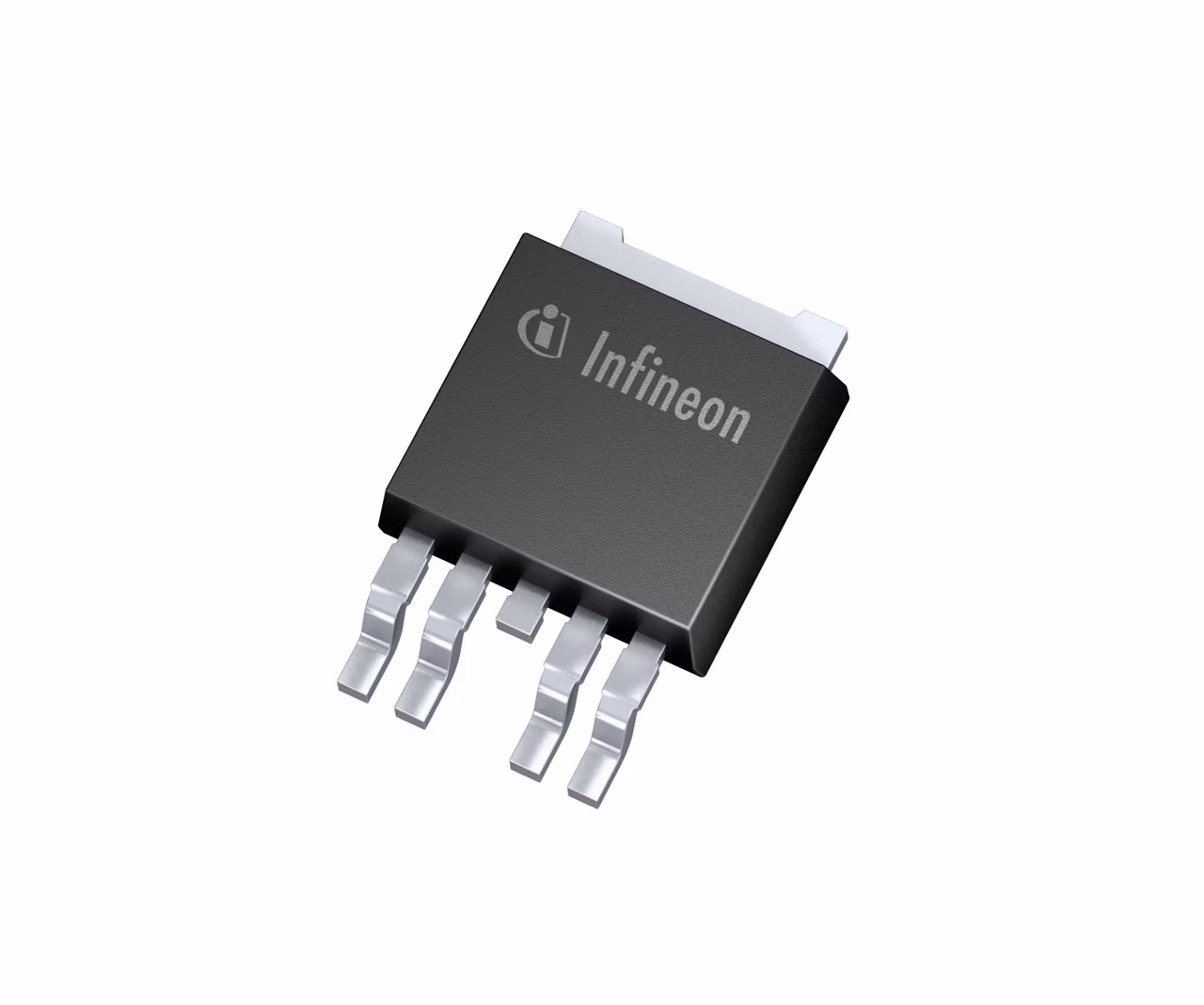

SPD50P03L G
  • SPD50P03L G

SPD50P03L G

Active

Infineon’s highly innovative OptiMOS™ families include p-channel power MOSFETs. These products consistently meet the highest quality and performance demands in key specifications for power system design such as on-state resistance and figure of merit characteristics.

Infineon Technologies SPD50P03L G Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k

0.72

Ciss

4590 pF

Coss

1220 pF

ID (@25°C) max

-50 A

IDpuls max

-200 A

Operating Temperature max

175 °C

Operating Temperature min

-55 °C

Package

DPAK (TO-252)

Polarity

P

Ptot max

150 W

QG (typ @10V)

-95 nC

RDS (on) (@10V) max

7 mΩ

Rth

1 K/W

VDS max

-30 V

VGS(th)

-1.5 V

Features

  • Enhancement mode
  • Logic level
  • Avalanche rated
  • Fast switching
  • dv/dt rated
Pb-free lead-plating
  • RoHS compliant, Halogen-free
  • Qualified according to AEC Q101
