S25HS02GTDPBHV053
  • S25HS02GTDPBHV053

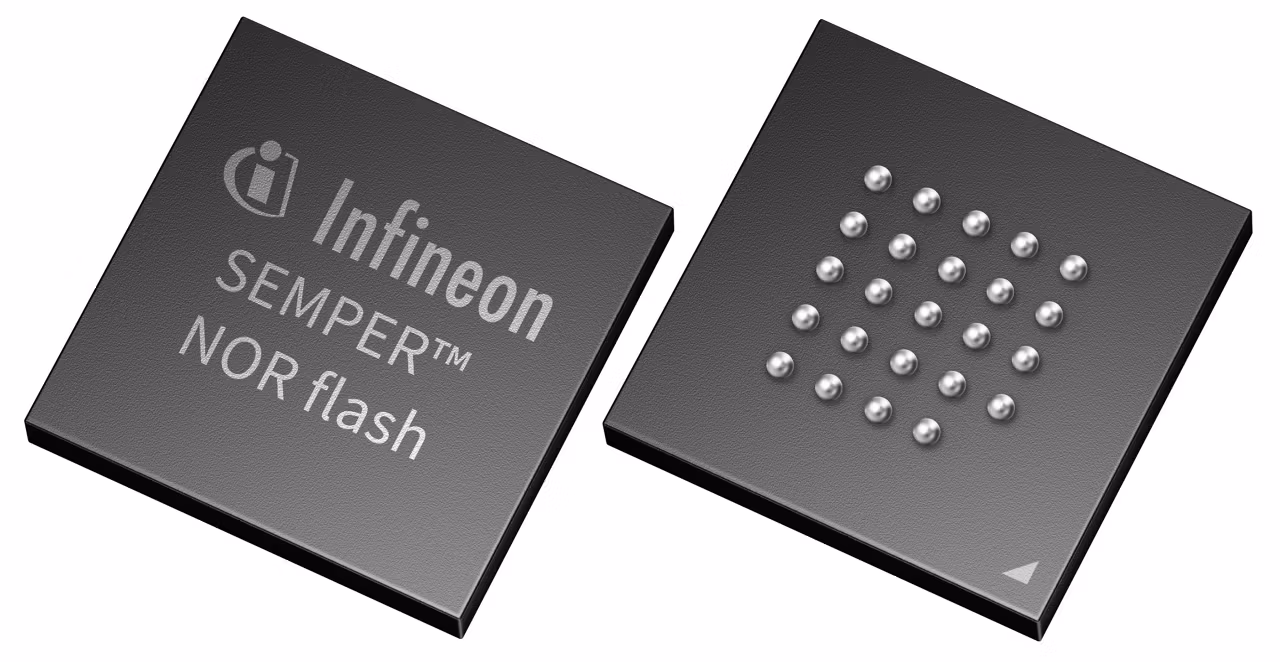

S25HS02GTDPBHV053

Active and preferred

The S25HS02GTDPBHV053 is a 2 Gb SEMPER™ NOR Flash memory using Infineon's 45-nm MIRRORBIT™ technology with dual-die architecture. It supports Quad SPI operation up to 102 MBps (DDR, 102 MHz) and 83 MBps (SDR, 166 MHz) at 1.8 V supply, and is rated for automotive AEC-Q100 Grade 2 (-40°C to +105°C).

Infineon Technologies S25HS02GTDPBHV053 Product Info

16 April 2026 0

Parameters

Density

2 GBit

Family

HS-T

Interface Bandwidth

66 MByte/s

Interface Frequency (SDR/DDR) (MHz)

133 / 66

Interfaces

Quad SPI

Lead Ball Finish

Sn/Ag/Cu

Operating Temperature range

-40 °C to 105 °C

Operating Voltage range

1.7 V to 2 V

Operating Voltage

1.8 V

Peak Reflow Temp

260 °C

Planned to be available until at least

2037

Qualification

Industrial

Features

  • Embedded ECC corrects 1-bit, detects 2-bit
  • Endurance flex: configurable wear leveling
  • Hardware CRC for data integrity check
  • Multiple data protection: LBP, ASP, SSR
  • SafeBoot for microcontroller failure recovery
  • Quad SPI, Dual I/O, QPI, SDR/DDR support
  • Page programming up to 512 bytes
  • Suspend/resume for program/erase ops
  • Four reset methods: hardware, POR, CS#, SW
  • Deep power down mode for low standby current
  • Wide VCC: HL-T 2.7–3.6 V, HS-T 1.7–2.0 V
  • Industrial temperature: –40°C to +85°C

Description

  • ECC ensures reliable data storage and reads
  • Wear leveling extends flash memory lifespan
  • CRC enables fast integrity verification
  • Flexible protection prevents accidental data
  • SafeBoot allows device recovery after faults
  • High-speed interfaces boost data throughput
  • Large page programming improves efficiency
  • Suspend/resume enables system responsiveness
  • Multiple resets enhance system robustness
  • DPD mode reduces power for battery devices
  • Supports broad supply and application needs
  • Operates reliably in harsh environments
