S25HS01GTFAMHA010
  • S25HS01GTFAMHA010

S25HS01GTFAMHA010

Active and preferred

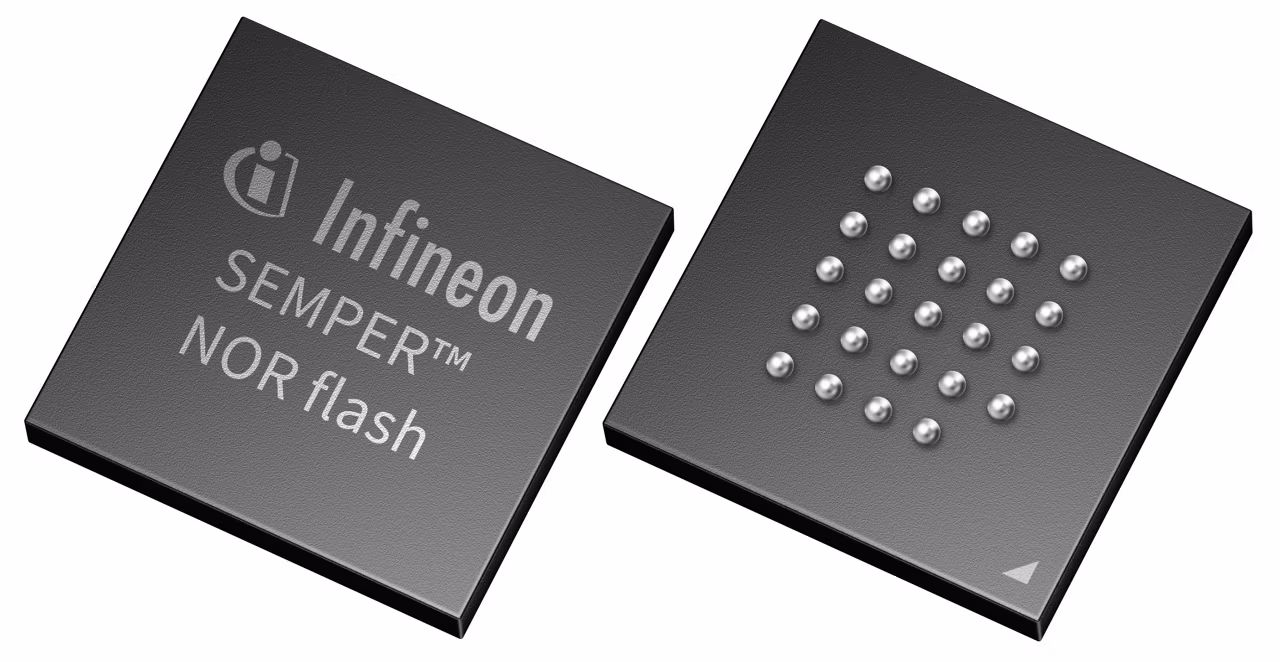

The S25HS01GTFAMHA010 is a 1 Gb SEMPER™ MirrorBit™ NOR Flash with Quad SPI interface, designed for functional safety and ISO 26262 ASIL-B compliance. Operating at 1.7 V to 2.0 V, it achieves up to 102 MBps read rates. Integrated ECC enables single-bit correction and two-bit error detection. Endurance Flex supports up to 1 million cycles or 25 years retention. Typical standby current is 11 uA. Suitable for automotive and industrial applications requiring robust data integrity.

Infineon Technologies S25HS01GTFAMHA010 Product Info

16 April 2026 12

Parameters

Classification

ISO 26262-compliant

Density

1 GBit

Family

HS-T

Interface Bandwidth

102 MByte/s

Interface Frequency (SDR/DDR) (MHz)

166 / 102

Interfaces

Quad SPI

Lead Ball Finish

Matte Tin Plating

Operating Temperature range

-40 °C to 85 °C

Operating Voltage range

1.7 V to 2 V

Operating Voltage

1.8 V

Peak Reflow Temp

260 °C

Planned to be available until at least

2037

Qualification

Automotive

Features

  • 45-nm MIRRORBIT™ stores 2 bits/cell
  • Uniform and hybrid sector architectures
  • 256/512-byte page programming buffer
  • 1024-byte OTP secure silicon array
  • Quad SPI up to 102 MBps (DDR, 102 MHz)
  • Dual SPI up to 41.5 MBps (SDR, 166 MHz)
  • SPI up to 21 MBps (SDR, 166 MHz)
  • Functional safety: ISO26262 ASIL B compliant
  • Endurance Flex: high-endurance/retention
  • Data integrity CRC and built-in ECC (SECDED)
  • SafeBoot for init failure/config corruption
  • Legacy and advanced sector protection

Description

  • High density, reliable storage in small
  • Flexible sectoring for varied application
  • Fast programming for efficient data handling
  • Secure OTP for device authentication
  • High-speed Quad/Dual SPI for rapid data
  • Industry-leading functional safety for
  • Partitioning optimizes endurance
  • Robust data integrity with CRC and ECC
  • SafeBoot ensures system recovery and uptime
  • Advanced protection prevents unauthorized
  • Instant boot accelerates system startup
  • Hardware reset enables reliable system
