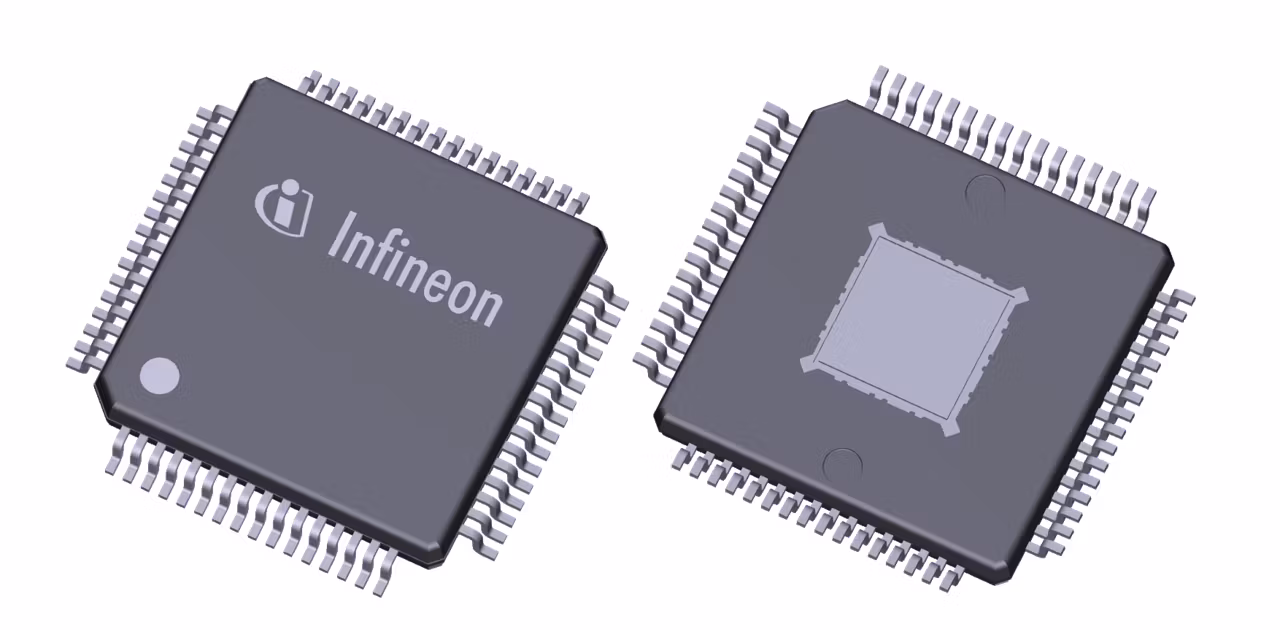

PSC3P2FDS2ABQ1
  • PSC3P2FDS2ABQ1

PSC3P2FDS2ABQ1

Active and preferred

Infineon Technologies PSC3P2FDS2ABQ1 Product Info

16 April 2026 0

Parameters

A/D Input Lines

10

ADC (#, Max. Resolution @ Sample Rate)

SAR (1, 12-bit @ 6 msps)

Additional Features

Security PSA L2, Safety Class B

BLE Maximum Data Rate

N/A

BLE Power Output

N/A

BLE RX Sensitivity

N/A

CAN

0

CapSense

N

Communication Interfaces

I2C, SPI, UART

Comparators

5

CPU

ARM Cortex-M33

Cryptographics Accelerator

Y

DAC (#, Max. Resolution @ Sample Rate)

(5,10-bit)

Development Software

ModusToolbox™

DMA Channels

32

EEPROM Emulation

Yes

Family

PSOC™ Control C3P Entry

Flash

256 kByte

Floating Point Unit

Y

Frequency

100 MHz

I/O Pins

14, 29

I2S

0

LCD Direct Drive

N

Lead Ball Finish

Pure Sn

Number of ADC Modules

1

Operating Temperature range

-40 °C to 115 °C

Operating Voltage range

1.71 V to 3.6 V

Operational Amplifier

0

PDM-PCM

0

Peak Reflow Temp

260 °C

Quad-SPI

N

Qualification

Industrial

Real Time Clock

Y

Secondary Core

N/A

Serial Communication Blocks

4

SRAM

64 kByte

Timer/Counter/PWM Blocks

20

Universal Digital Blocks

0

USB I/O

0

USB Type

None
