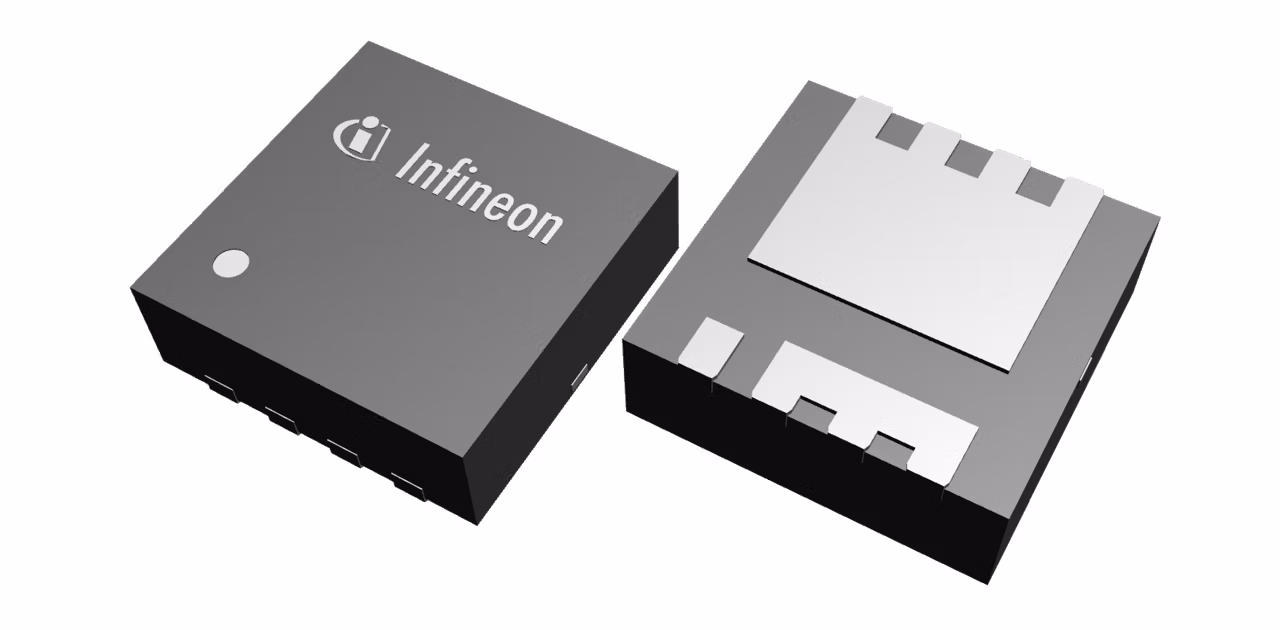

ISZ143N13NM6
  • ISZ143N13NM6

ISZ143N13NM6

Active and preferred

OptiMOS™ 6 135 V targets high-power motor-drive applications such as LEVs, e-forklifts, power and gardening tools, but also UPS applications which predominantly use 72-84 V batteries. This product effectively bridges the gap between the 120 V and 150 V MOSFETs and provides significant improvements in RDS(on) and cost, helping improve the system efficiency.

Infineon Technologies ISZ143N13NM6 Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k

0.96

ID (@25°C) max

54 A

IDpuls max

216 A

Operating Temperature range

-55 °C to 175 °C

Package

PQFN 3.3 x 3.3 Fused Lead

Polarity

N

QG (typ @10V)

21 nC

RDS (on) (@10V) max

14.3 mΩ

VDS max

135 V

VGS(th) range

2.5 V to 3.5 V

VGS(th)

3 V

Features

  • Industry’s lowest RDS(on) in 135 V
  • Low Vgs(th) spread
  • Ultra-low reverse recovery charge (Qrr)

Description

  • System cost reduction
  • Less paralleling required
  • Reduced VDS overshoot & switching losses
  • Higher power density designs
