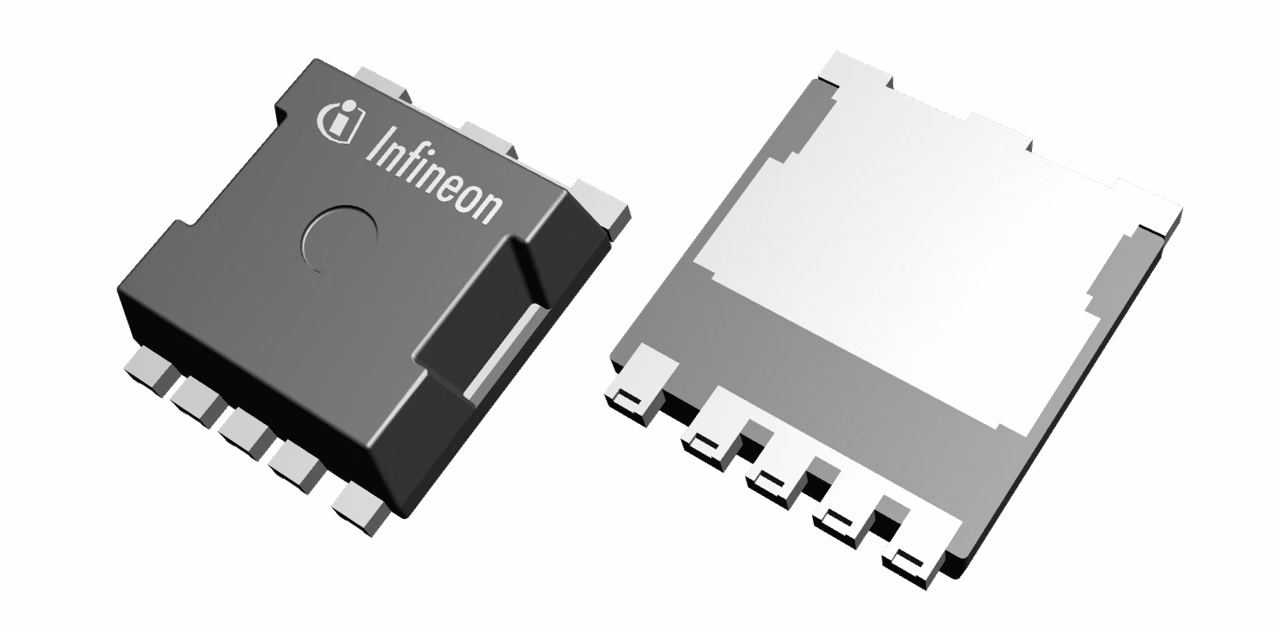

IST026N10NM5
  • IST026N10NM5

IST026N10NM5

Active and preferred

The IST026N10NM5 OptiMOS™ 5 power MOSFET 100 V in sTOLL package features low RDS(on) of 2.6 mOhm and 248 A high current capability. It has the advantages of Infineon’s well-known quality level for robust industry packages making it the ideal solution for various performance in battery powered applications, including power tools and gardening tools, and eScooters. The improved RDS(on) and ID ratings, continuous and pulsed, enable increased battery run time and higher power density.

Infineon Technologies IST026N10NM5 Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k

1.44

ID (@25°C) max

248 A

IDpuls max

992 A

Operating Temperature range

-55 °C to 175 °C

Package

sTOLL (HSOF-5)

Pin Count

5 Pins

Polarity

N

Ptot max

313 W

QG (typ @10V)

89 nC

RDS (on) (@10V) max

2.6 mΩ

VDS max

100 V

VGS(th) range

2.2 V to 3.8 V

Features

  • JEDEC registered
  • 7x8 mm² small footprint
  • 248 A high current capability
  • Leadless package
  • Low package R and min stray inductance
  • Latest generation technology OptiMOS™ 5
  • RDS(on)2.6 mOhm
  • Lead tip inspection feature
  • Lead tip inspection feature

Description

  • High power & current density
  • High thermal capacity
  • Reduced conduction losses
  • Optimized switching behavior
  • Smaller than DPAK/D2PAK
  • Common JEDEC MO-319A package
