IST019N08NM5
  • IST019N08NM5

IST019N08NM5

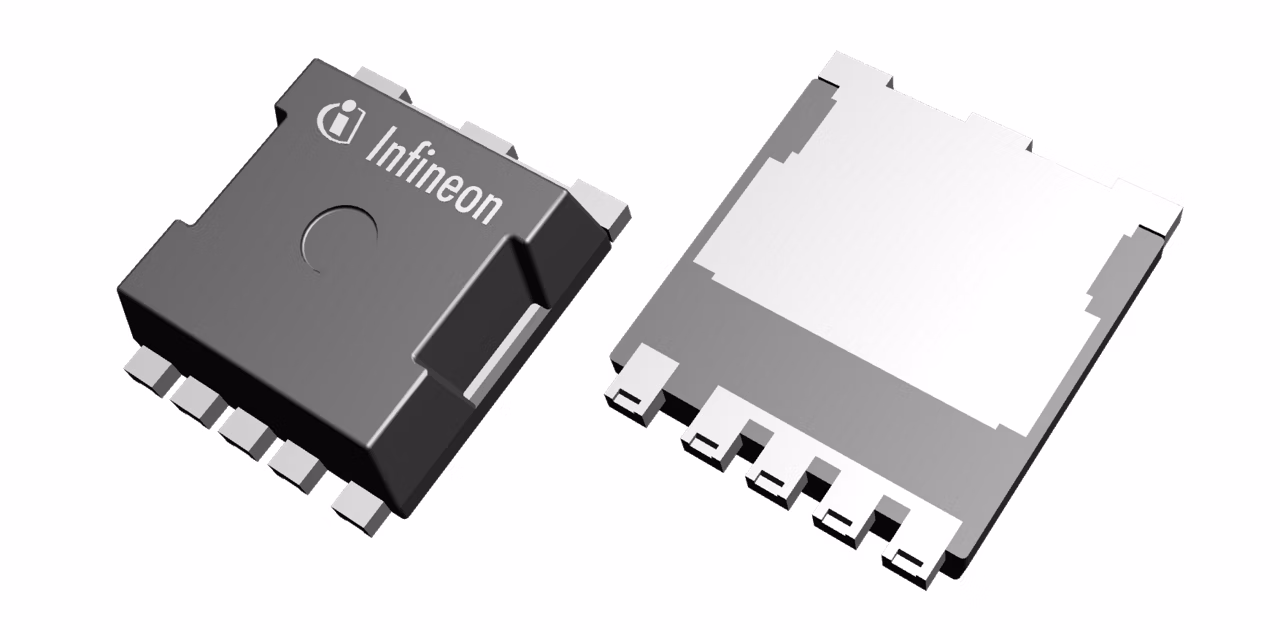

The IST019N08NM5 OptiMOS™ 5 power MOSFET 80 V in sTOLL package features low RDS(on) of 1.9 mOhm and 290 A high current capability. It has the advantages of Infineon’s well-known quality level for robust industry packages making it the ideal solution for various performance in battery management systems, light electric vehicles, and industrial robots. The improved RDS(on) and ID ratings, continuous and pulsed, enable increased battery run time and higher power density.

Infineon Technologies IST019N08NM5 Product Info

16 April 2026 0

Parameters

Battery voltage

36-48 V

Budgetary Price €/1k

1.43

ID (@25°C) max

290 A

IDpuls max

1160 A

Operating Temperature range

-55 °C to 175 °C

Package

sTOLL (HSOF-5)

Pin Count

5 Pins

Polarity

N

Ptot max

313 W

QG (typ @10V)

94 nC

RDS (on) (@10V) max

1.9 mΩ

VDS max

80 V

VGS(th) range

2.2 V to 3.8 V

Features

  • JEDEC registered
  • 7x8 mm² small footprint
  • 290 A high current capability
  • Leadless package
  • Low package R and min stray inductance
  • Latest generation technology OptiMOS™ 5
  • RDS(on)1.9 mOhm
  • Lead tip inspection feature
  • Lead tip inspection feature

Description

  • High power & current density
  • High thermal capacity
  • Reduced conduction losses
  • Optimized switching behavior
  • Smaller than DPAK/D2PAK
  • Common JEDEC MO-319A package
