IST015N06NM5
  • IST015N06NM5

IST015N06NM5

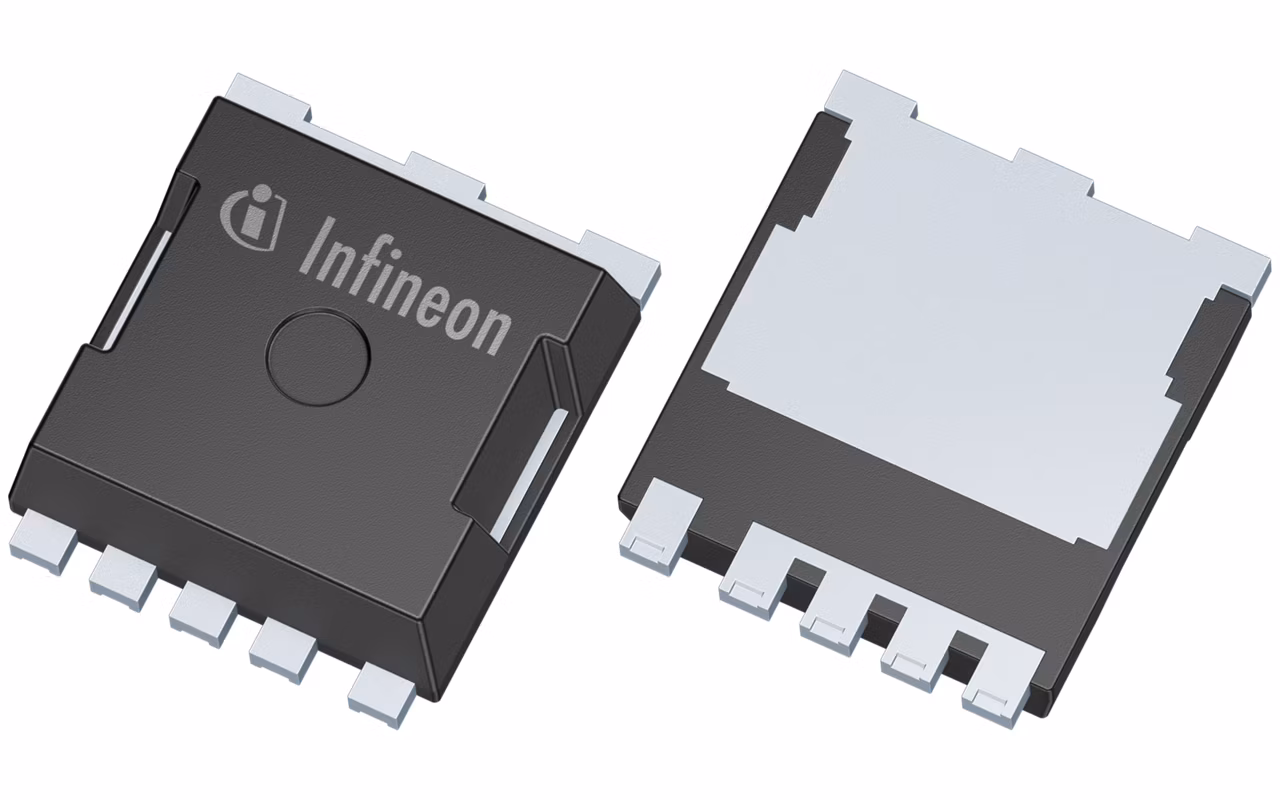

The OptiMOS™ 5 power MOSFET 60 V in sTOLL package features RDS(on) of 1.5 mOhm. It has the advantages of Infineon’s well-known quality level for robust industry packages making it the ideal solution for various performance in battery powered applications, including power and gardening tools and E-scooters.

Infineon Technologies IST015N06NM5 Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k

2.36

ID (@25°C) max

242 A

IDpuls max

968 A

Mounting

SMD

Operating Temperature range

-55 °C to 175 °C

Package

sTOLL (HSOF-5)

Pin Count

5 Pins

Polarity

N

Ptot max

167 W

QG (typ @10V)

71 nC

RDS (on) (@10V) max

1.5 mΩ

VDS max

60 V

VGS(th) range

2.1 V to 3.3 V

VGS(th)

2.8 V

Features

  • JEDEC registered
  • 7x8 mm² small footprint
  • Leadless package
  • Low package R & min stray inductance
  • Latest generation technology OptiMOS™ 5
  • RDS(on)1.5 mOhm
  • Lead tip inspection feature

Description

  • High power & current density
  • High thermal capacity
  • Reduced conduction losses
  • Optimized switching behavior
  • Smaller than DPAK/D2PAK
  • Common JEDEC MO-319A package
