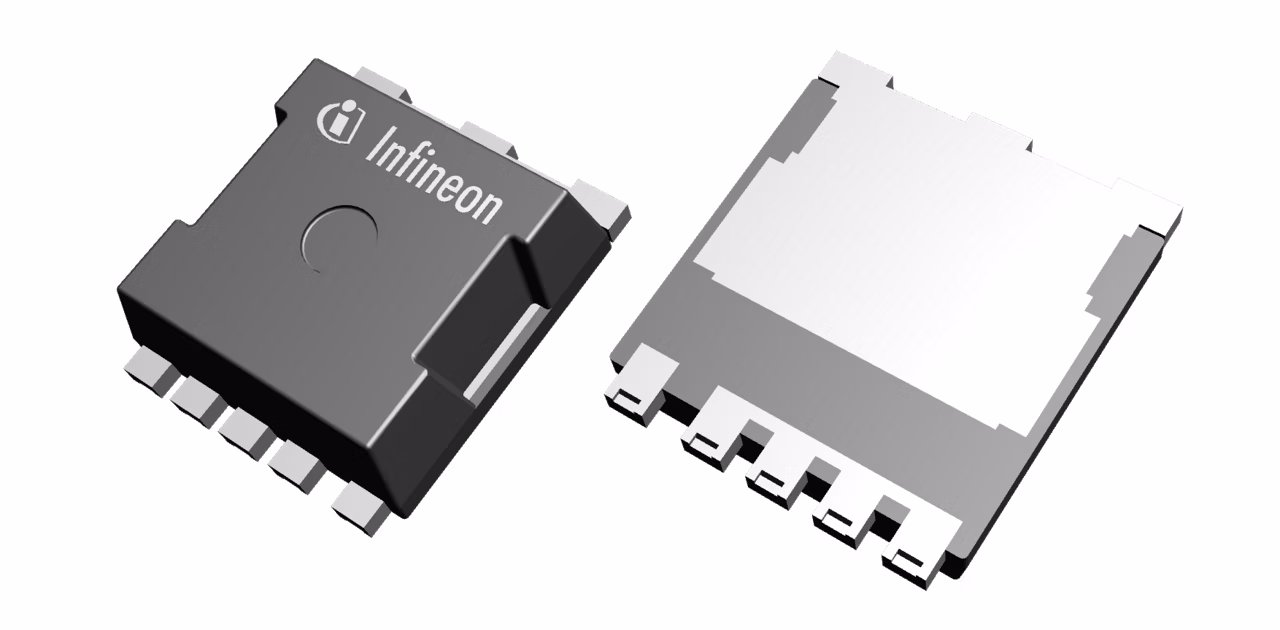

IST007N04NM6
  • IST007N04NM6

IST007N04NM6

The OptiMOS™ 6 power MOSFET 40V in sTOLL package features very low RDS(on) of 0.70mOhm and 440A high current capability. It has the advantages of Infineon’s well-known quality level for robust industry packages making it the ideal solution for various performance in battery powered applications, battery protection and battery formation.The improved RDS(on) and ID ratings, continuous and pulsed, enable increased battery run time and higher power density.

Infineon Technologies IST007N04NM6 Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k

1.39

ID (@25°C) max

440 A

IDpuls max

1760 A

Operating Temperature range

-55 °C to 175 °C

Package

sTOLL (HSOF-5)

Polarity

N

Ptot max

250 W

QG (typ @10V)

114 nC

RDS (on) (@10V) max

0.7 mΩ

VDS max

40 V

VGS(th) range

2.1 V to 3.3 V

VGS(th)

2.5 V

Features

  • JEDEC registered
  • 7x8 mm² small footprint
  • 440A high current capability
  • Leadless package
  • Low package R and min stray inductance
  • Latest generation technology OptiMOS™ 6
  • RDS(on) 0.70mOhm
  • Lead tip inspection feature
  • Lead tip inspection feature

Description

  • High power & current density
  • High thermal capacity
  • Reduced conduction losses
  • Optimized switching behavior
  • Smaller than DPAK/D2PAK
  • Common JEDEC MO-319A package
