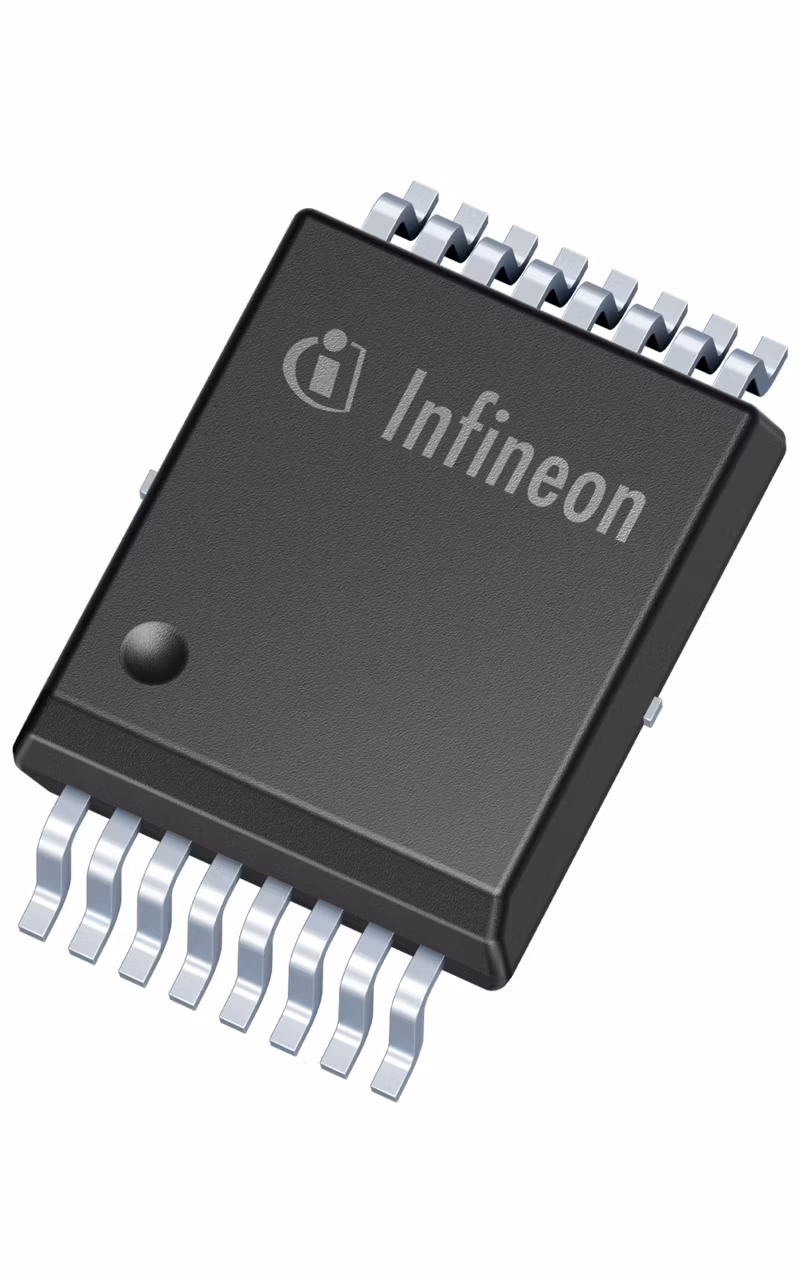

ISSI30R11H
  • ISSI30R11H

ISSI30R11H

Active and preferred

This solid-state isolator provides powerful energy transmission over a galvanic isolation barrier. No dedicated voltage supply required on the output stage. Input to output buffered drive enables fast turn-on/off for safe switches SOA operation. This device features miller clamping, over-current and over-temperature protections, reading an external PTC sensor, to easily and safely build protected solid-state relays.

Infineon Technologies ISSI30R11H Product Info

16 April 2026 0

Parameters

Control Current

16 mA

Fast turn-on saturation current

400 mA

Isolation Type

Galvanic Isolation – Reinforced

Output Voltage

15 V

Outputs

1

Product Category

Solid State Isolators

Short Circuit Current min

400 mA

Technology

Coreless transformer

Type

Fast turn-on

Apps

Industrial automation, Programmable logic controller (PLC), Power transmission and distribution, Robotics, Home and building automation, Battery management systems (BMS), Power conversion

Features

  • Coreless Transformer Technology
  • Energy transfer across isolation barrier
  • Drives benchmark Infineon MOSFETs
  • Temperature and current protection
  • 400 mA turn-on and 160 mA turn-off
  • Wide-body package (PG-DSO-8 300mil)
  • High creepage and clearance
  • Reinforced isolation

Description

  • No isolated bias supply required
  • Galvanic Isolation up to 5.7 kV rms
  • Minimizes the need for heatsinks
  • Widest range of controllable switches
  • Large application platforms
  • Eliminates spurious switch turn on
  • Meets UL 1577 and IEC 60747-17
