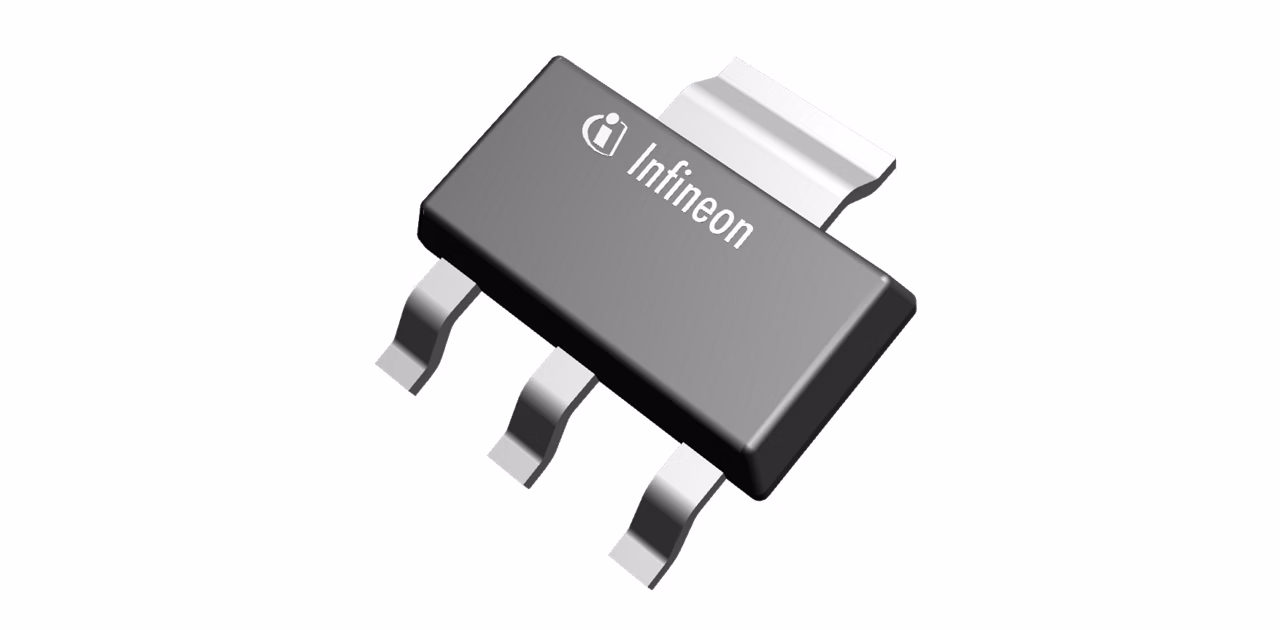

ISP20EP10LM
  • ISP20EP10LM

ISP20EP10LM

Active and preferred

OptiMOS™ P-Channel MOSFET 100 V in SOT-223 package targeting battery management, load switch and reverse polarity protection applications, reducing design complexity in medium and low power applications. Easy interface to MCU, fast switching as well as avalanche ruggedness makes it suitable for high quality demanding applications. Available in normal level featuring a wide RDS(on) range and improves efficiency at low loads.

Infineon Technologies ISP20EP10LM Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k

0.1

ID (@25°C) max

-0.99 A

ID max

-0.99 A

IDpuls max

-4 A

Mounting

SMT

Operating Temperature range

-55 °C to 150 °C

Package

SOT-223

Pin Count

4 Pins

Polarity

P

Ptot max

4.2 W

QG (typ @10V)

-3.5 nC

QG

-3.5 nC

QG (typ @4.5V)

-1.8 nC

RDS (on) (@10V) max

2000 mΩ

RDS (on) (@4.5V) max

2200 mΩ

VDS max

-100 V

VGS(th)

-1.5 V

VGS(th) range

-1 V to -2 V

Apps

Uninterruptible power supplies (UPS)

Features

  • High and low switching frequency
  • Avalanche ruggedness
  • Standard footprint surface mount package
  • Broad availability distribution partners

Description

  • Supports a wide variety of applications
  • Robust, reliable performance
  • Standard pinout for drop-in replacement
  • Increased security of supply
