ISC320N12LM6
  • ISC320N12LM6

ISC320N12LM6

Active and preferred

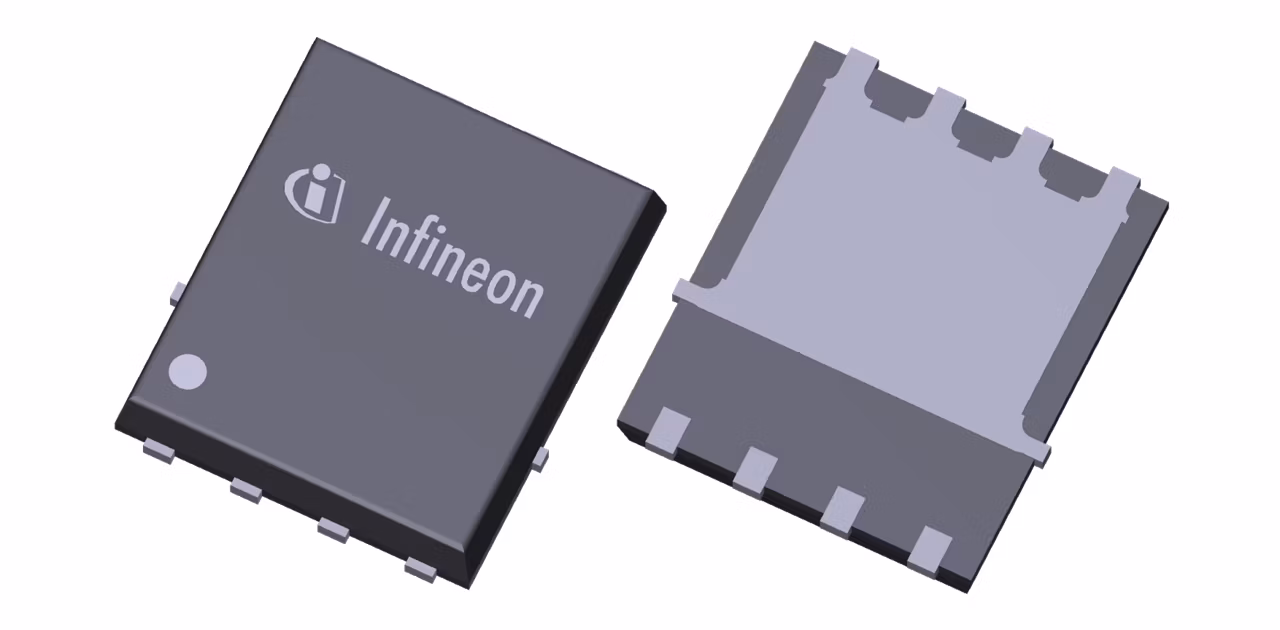

This is a logic level 120 V MOSFET in SuperSO8 packaging with 32 mOhm on-resistance. ISC320N12LM6 is part of Infineon’s OptiMOS™ 6 power MOSFET family.

Infineon Technologies ISC320N12LM6 Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k

0.31

ID (@25°C) max

24 A

IDpuls max

96 A

Operating Temperature range

-55 °C to 175 °C

Package

SuperSO8 5x6

Polarity

N

QG (typ @4.5V)

4.1 nC

QG (typ @10V)

7.6 nC

RDS (on) (@10V) max

32 mΩ

RDS (on) (@4.5V) max

44 mΩ

Special Features

Logic Level

VDS max

120 V

VGS(th) range

1.2 V to 2.2 V

VGS(th)

1.7 V

Features

  • Compared to OptiMOS™ the technology features:
  • up to 40% better RDS(on)
  • up to 50% better FOMg
  • up to 50% better Qrr

Description

  • Very low on-resistance
  • Very low reverse recovery charge
  • Excellent gate charge x RDS(on)
  • High avalanche energy rating
  • 175°C junction temperature rating
  • Pb-free plating
  • RoHS compliant
  • Halogen-free
  • MSL1 classified
