Product
0
ISC055N15NM6
  • ISC055N15NM6

ISC055N15NM6

Active and preferred

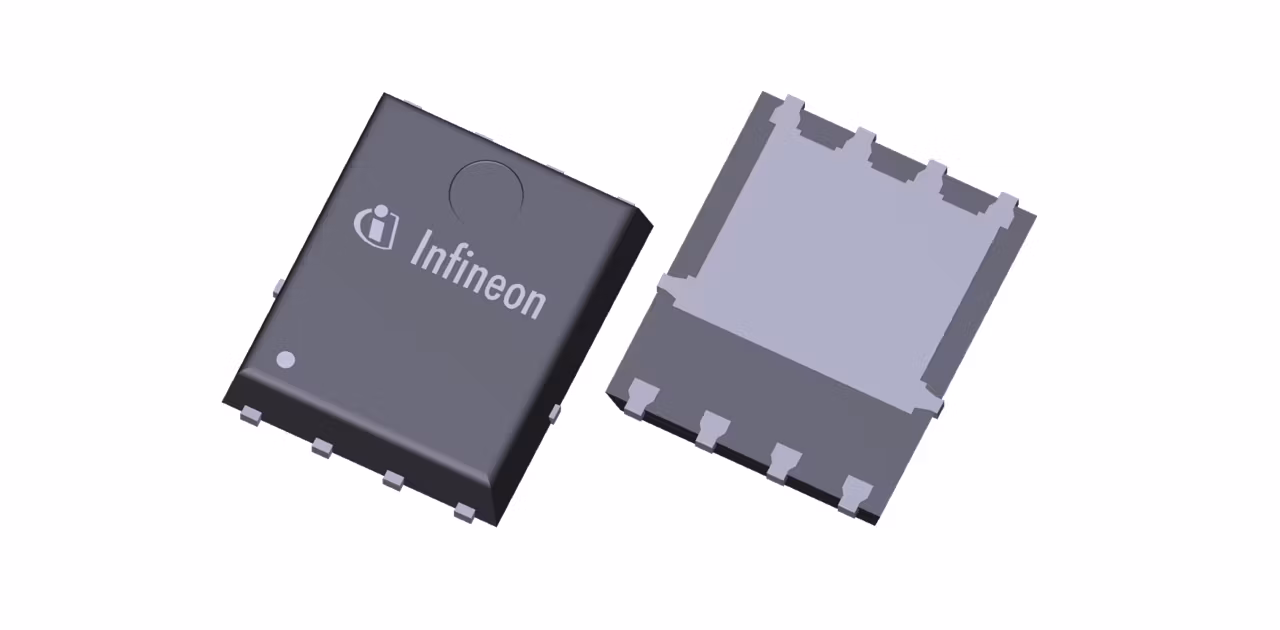

Infineon Technologies ISC055N15NM6 Product Info

16 April 2026 0

Parameters

ID (@25°C) max

130 A

IDpuls max

520 A

Operating Temperature range

-55 °C to 175 °C

Package

SuperSO8 5x6 FL

Polarity

N

Ptot max

214 W

QG (typ @10V)

43 nC

RDS (on) (@10V) max

5.5 mΩ

Special Features

Fused leads

VDS max

150 V

VGS(th) range

3 V to 4 V

VGS(th)

3.5 V

Apps

Server power supply units (PSU), Telecommunications infrastructure, Battery energy storage (BESS), Photovoltaic, Industrial power supplies

Features

  • Very low RDS(on)
  • 20% lower FOMg than OptiMOS™ 5
  • Industry's lowest Qrr in 150 V
  • Improved diode softness vs OptiMOS™ 5
  • Tight Vgs(th) spread of +/-500 mV
  • High avalanche ruggedness
  • Max Tj of 175°C

Description

  • Low conduction and switching losses
  • Stable operation with improved EMI
  • Better current sharing when paralleling
  • Optimized PCB area utilization
  • Enhanced robustness
  • Improved system reliability
