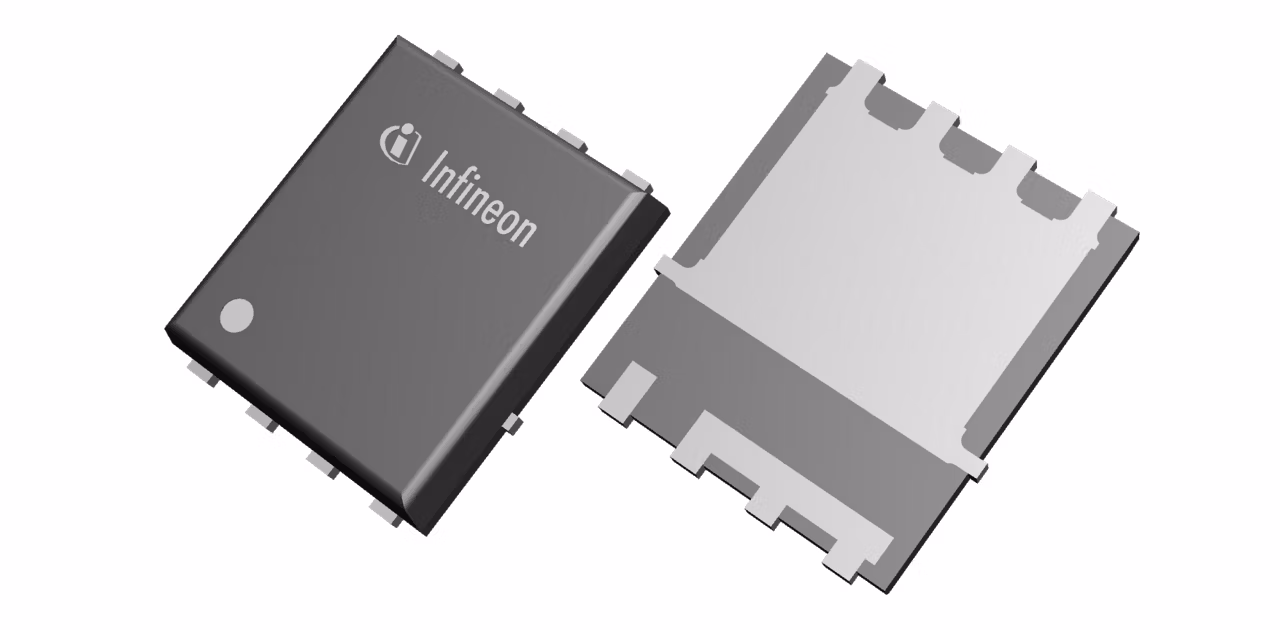

ISC033N10NM8
  • ISC033N10NM8

ISC033N10NM8

Active and preferred

Infineon Technologies ISC033N10NM8 Product Info

16 April 2026 0

Parameters

ID (@25°C) max

150 A

IDpuls max

600 A

Operating Temperature range

-55 °C to 175 °C

Package

SuperSO8 5x6

Polarity

N

Ptot max

179 W

QG (typ @10V)

59 nC

RDS (on) (@10V) max

3.43 mΩ

Special Features

Fused leads

VDS max

100 V

VGS(th) range

2.4 V to 3.2 V

VGS(th)

2.8 V

Apps

Multicopters and drones, Power tools, Humanoid robots, Motor control

Features

  • Very low on-resistance RDS(on)
  • High ID current rating
  • Tight VGS(th) spread
  • Soft body diode recovery and low Qrr>
  • 100% avalanche tested
  • Pb-free lead plating; RoHS compliant
  • Halogen-free according to IEC61249-2-21
  • MSL 1 classified according to J-STD-020
  • N-channel, normal level

Description

  • Best price/performance technology
  • Lowest conduction losses
  • Improved current sharing
  • Excellent switching, soft body diode
  • Ease of use
